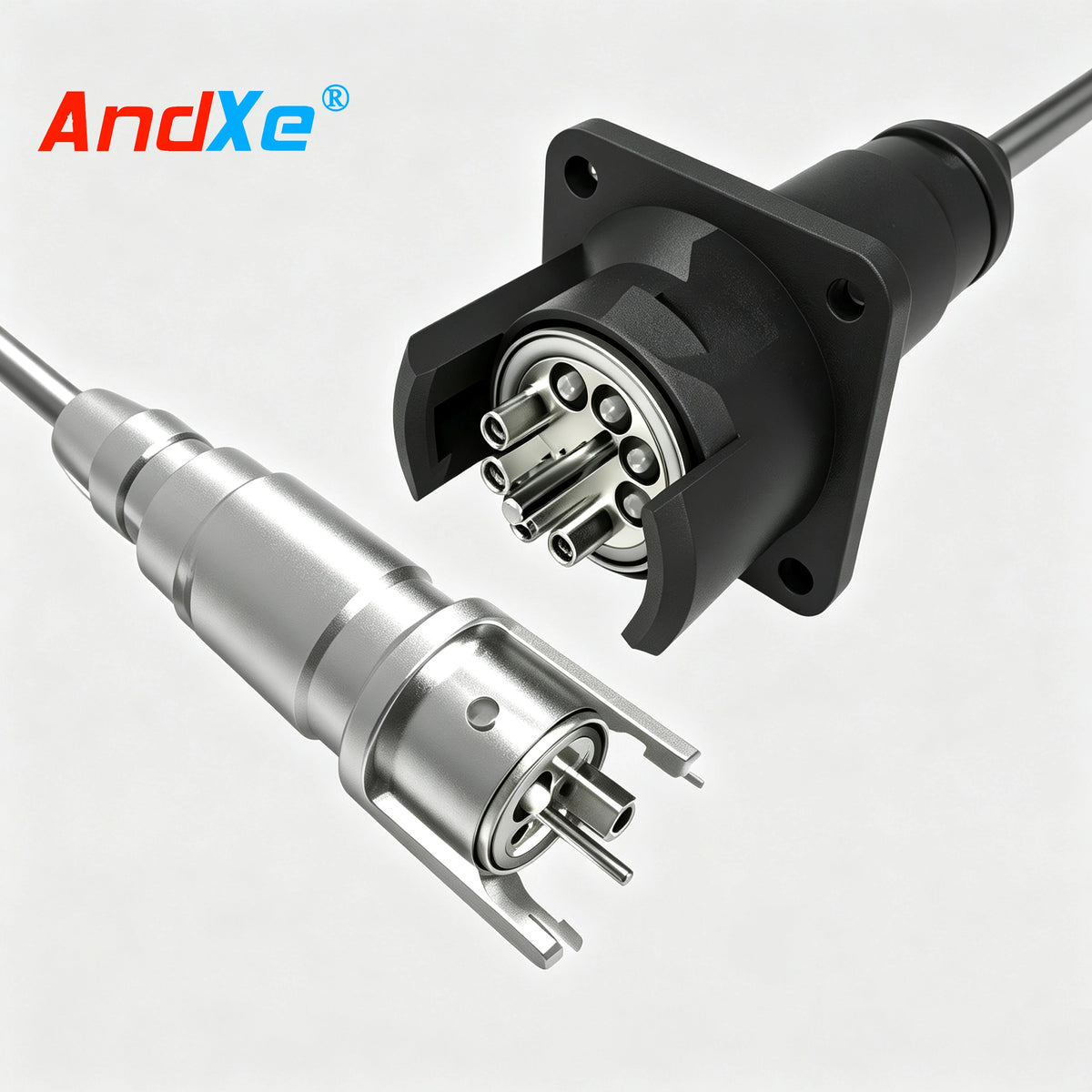

YZ series circular neutral fiber optic connectors
¥0.00
Product Overview
● Compliant with GJB1919A
● Employs a neutral bayonet locking mechanism for quick connection and disconnection
● Through-wall sealed connection structure; this connector has up to 12 pins
● Neutral design, male and female connectors are interchangeable
● Housing available in stainless steel, aluminum alloy, and polymer composite materials
● Employs ceramic ferrules and sleeves for precise fiber optic splicing
● Suitable for military communications, military computer systems, nuclear power applications, vehicle
communications, and other emergency communications.
Main Technical Specifications :
Mechanical Performance
● Mechanical Life : 500 insertion/extraction cycles
● Tensile Strength: ≥500N (main cable)
● Vibration: 10Hz～500Hz, acceleration 980m/s²
Shock : 980m/ s²
Environmental Performance
● Temperature Range: -40°C to +85°C
● Protection Rating: IP67
Optical Performance
● Insertion Loss: ≤0.8dB (2-core to 4-core) ≤1.0dB (6-core to 12-core)
