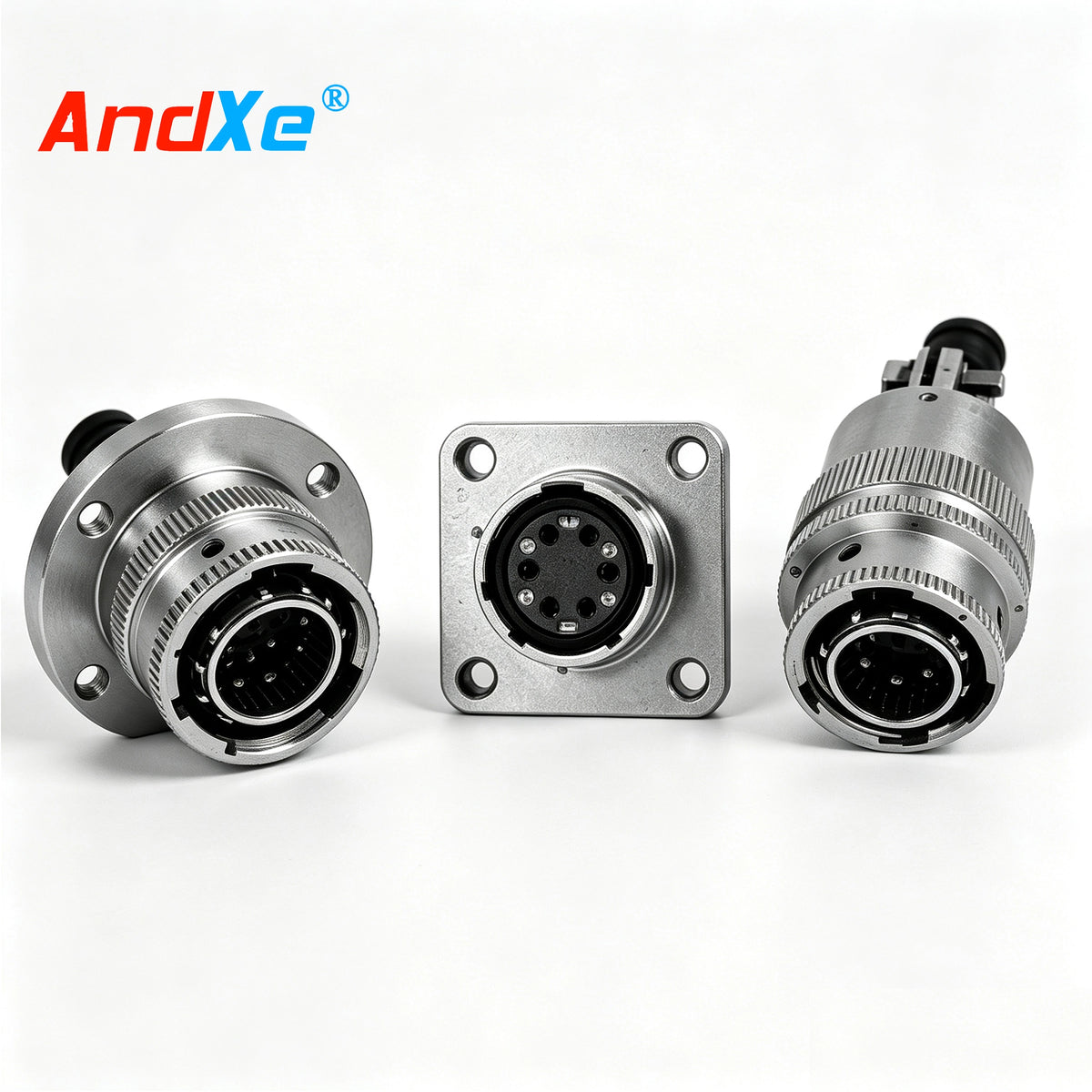

Y50EX series circular electrical connectors

Product Introduction
● Complies with GJB598A-96 standard, referencing US military standard MIL-C-26482
● Bayonet-type quick connection
● Termination method is welding
● Socket mounting options include flange type, cable type, through-wall type, and nut tightening type
● Five-button design with blind insertion function
● Plugs and sockets can be fitted with pins or holes
● Equivalent to JY series, YB series, and MS series; corresponding plugs and sockets of the same model are interchangeable
● Widely used for wiring connections in electrical and electronic equipment in aviation, aerospace, marine, field communications, armored vehicles, industrial and transportation power, postal and railway command systems, etc.
● Interchangeable with YL model products

Mechanical Properties
● Housing: Aluminum alloy, stainless steel
● Coating: Shielding coating: Electroless nickel plating, sandblasted electroless nickel plating, electroplated military green cadmium, copper electroless nickel plating, stainless steel passivation
● Unshielded coating: Black anodizing, military green anodizing
● Insulator: Thermoplastic material
● Contacts: Steel alloy plated with gold
● Sinusoidal vibration: 10~2000HZ, acceleration 147m/s² ^●
Impact: Acceleration 392m/s² ^●
Shock: Acceleration 980m/s² ^●
Service life: 500 insertion/removal cycles

Operating Environment Conditions
● Operating Temperature: -55°C to +125°C
● Relative Humidity: 90% to 95% at 40±2°C
● Air Tightness (Socket): 0.2 MPa ● Leakage Rate (Glass Sintered Socket): Leakage rate not greater than 1×10⁻⁸ ^Pa ·cm³ ^/ s at
a pressure difference of 1.01×10⁵ ^{Pa .}
