Y50DX Series Circular Electrical Connectors
¥0.00
跳至产品信息

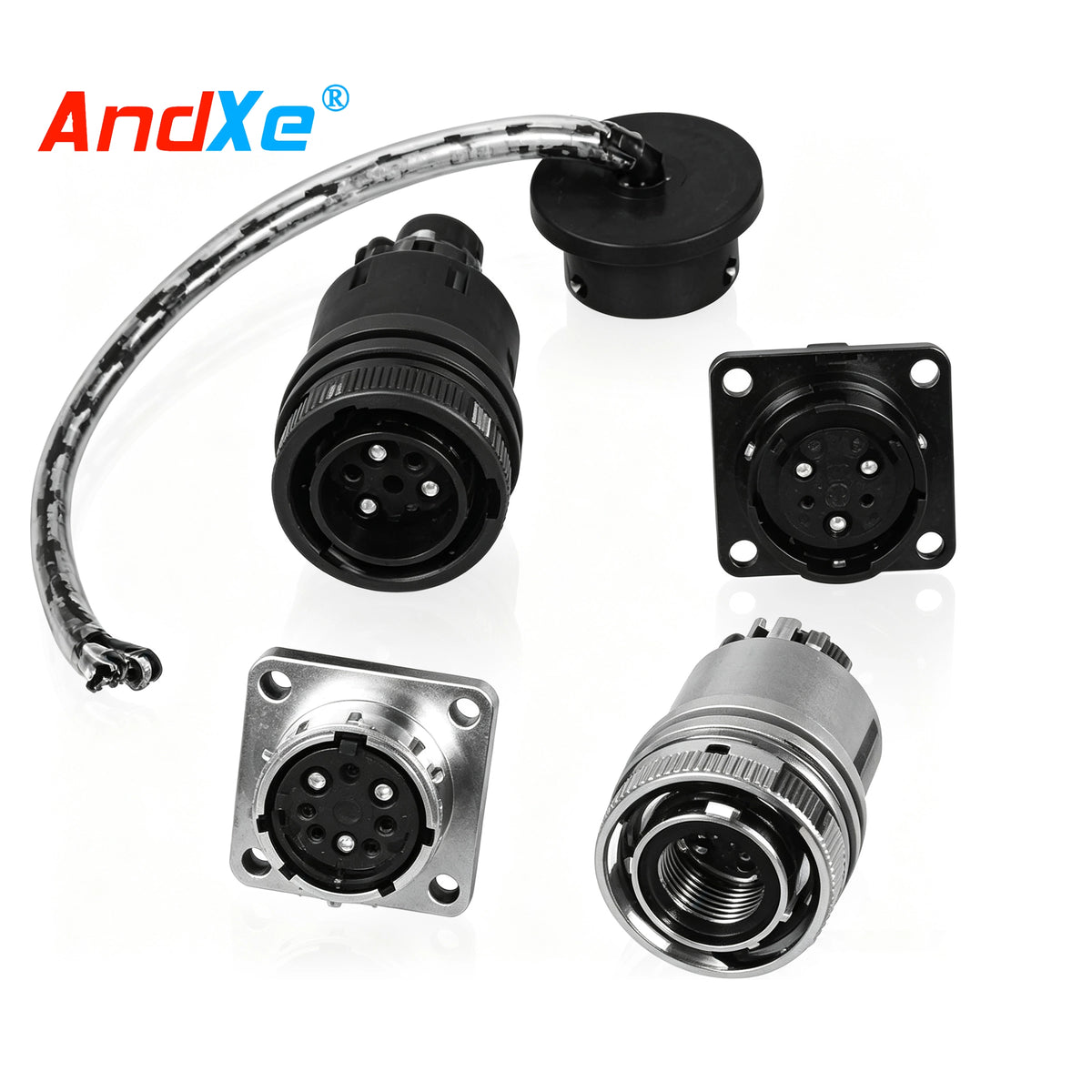

Y50DX Series Circular Electrical Connectors
Product Introduction
● Complies with G.JB101A-97 standard "General Specification for Environmentally Resistant Quick-Separation Small Circular Electrical Connectors"
● Socket mounting options include flange type, cable type, through-wall type, and nut tightening type
● Bayonet quick connection
● Soldering termination
● Five-button blind mating function
● Plugs and sockets can be fitted with either pins or holes
● Suitable for high-current power supply connections
● Standard: Q/321283LSA03
● Interchangeable with YLD equivalent models
Mechanical Properties
● Housing: Aluminum alloy, copper alloy, stainless steel
● Coating: Shielding coating: Electroless nickel plating, sandblasted electroless nickel plating, electroplated military green cadmium, copper electroless nickel plating, stainless steel passivation
● Unshielded coating: Black anodizing, military green anodizing
● Insulator: Thermoplastic material
● Contacts: Gold-plated steel alloy
● Sinusoidal vibration: 10~2000HZ, acceleration 147m/s²
● Impact: Acceleration 392m/s²
● Shock: Acceleration 980m/s²
● Service life: 500 insertion/removal cycles
Operating Environment Conditions
● Operating Temperature: -55°C to +125°C
● Relative Humidity: 90% to 95% at 40±2°C
● Air Tightness (Socket): 0.2 MPa
