XCE(Y55E) series circular electrical connectors
¥0.00
跳至产品信息

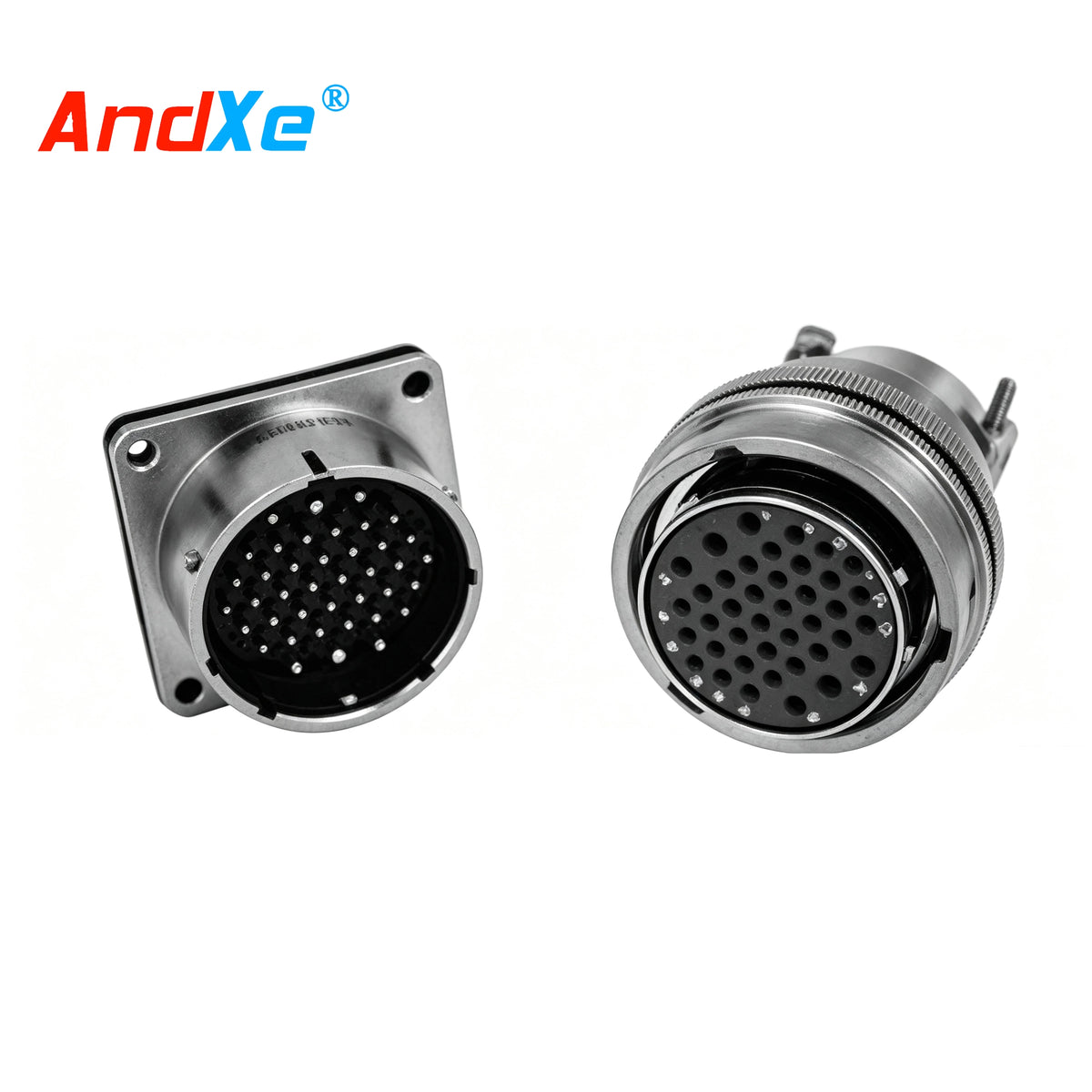

XCE(Y55E) series circular electrical connectors
Product Overview
Based on the XC-type contact arrangement, this product maintains the same electrical performance while compressing the hole spacing. It is smaller and lighter than the XC-type for the same number of cores. The contact density of this series is equivalent to MIL-C-26482 Series I.
● Bayonet-type quick-connect system: easy to operate and reliable connection. ● Vibration and shock resistant.
● Five-key positioning with blind mating and anti-mismating functions
● Five key positions are available to avoid mismating between connectors with the same shape.
● Plug and socket termination method: soldering.
● Plugs and sockets can be fitted with pins or holes.
● Protection rating reaches IP65.
Mechanical Properties
● Housing: High-strength aluminum alloy; Shielding coating: Zinc-plated military green or zinc-plated rainbow passivation; Electroless nickel plating; Non-shielding coating: Anodized black
● Insulator: Thermosetting material
● Sealing body and sealing ring: Silicone rubber material
● Contacts: Copper alloy plated with gold, iron alloy plated with gold
● Sinusoidal vibration: 10~2000HZ, acceleration 196m/s²
● Shock: Acceleration 980m/s²
● Mechanical life: 1000 cycles
