Power and wavelength testing
Test the signal transmission strength and wavelength, ensure the signal decoding capability of the receiver, and maintain consistency in wavelength from the transmitter to the receiver.
622M SFP SFP-622M-40KM-SM1310 optical module
¥0.00
跳至产品信息

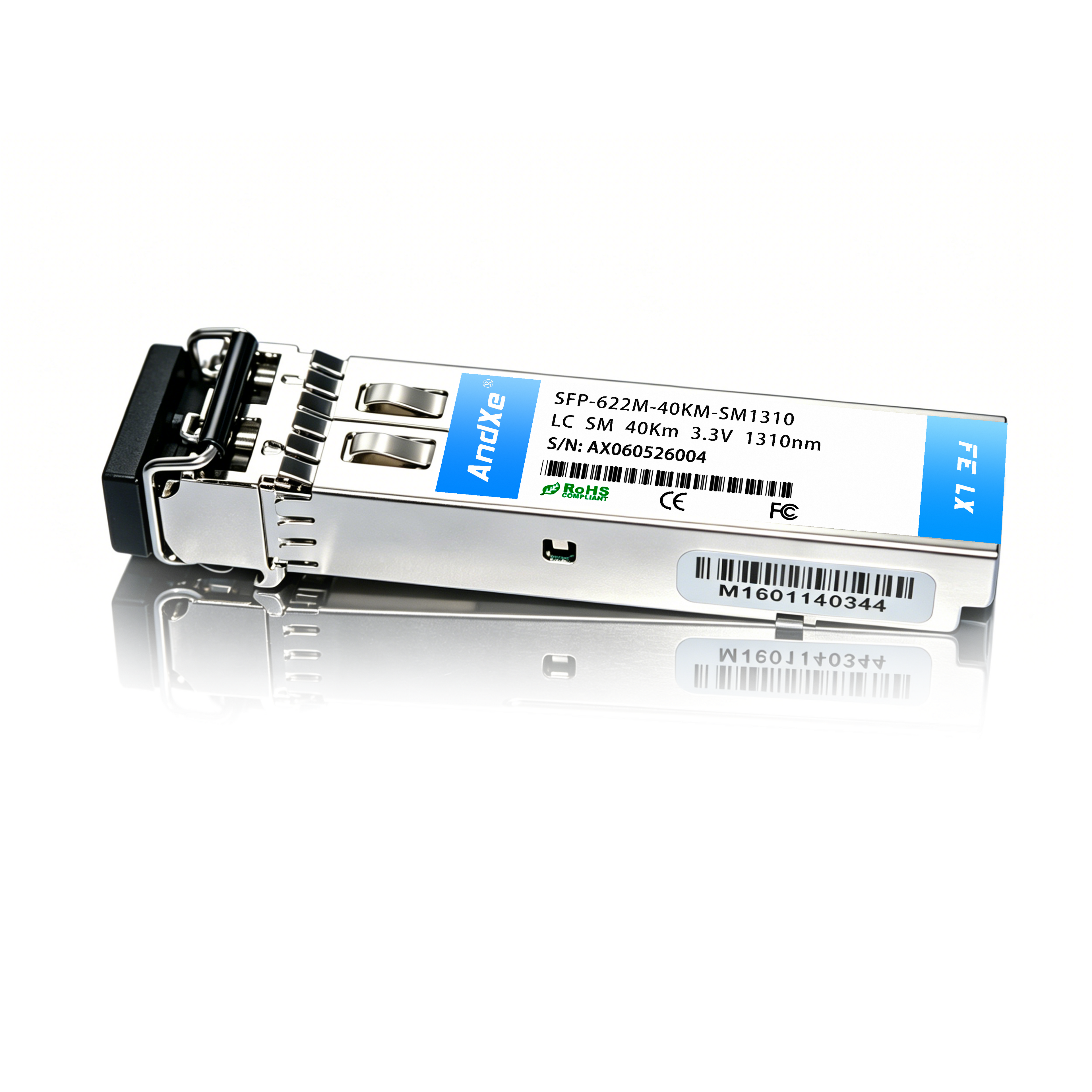

622M SFP SFP-622M-40KM-SM1310 optical module
¥0.00
Product Overview
The 622M SFP optical module series is a high-stability network communication optical module independently developed and produced by Xianyun Technology, with a speed of up to 622M; multimode/single mode options are available; multiple wavelengths such as 850nm/1310nm/1550nm/CWDM/DWDM are selectable; transmission distances ranging from 0 to 160km are optional; it is widely used in various fields such as aerospace, aviation, military, ships, electricity, railway, medical, transportation, communication, telecom operators, industrial control, and power control
Product parameters
Model: SFP-622M-40KM-SM1310
Transmission rate: 622M
Transmission distance: 40km
Transmission wavelength: 1310nm
Fiber type: Single mode
Interface type: Dual LC
Operating temperature: 0-70℃
Operating voltage +3.3V
Optional with/without DDM
Product features
Up to 622Mb/s data link
1310nm FP laser emitter and PIN photodetector
Hot-swappable SFP package
low power consumption
Metal casing, used to reduce EMI
Complies with RoHS-10 standard and is lead-free
Support digital diagnostic monitoring interface
Compliant with SFF-8472 standard
Our Advantages
With excellent skills and rich experience
Independent research and development, craftsmanship and intelligence, customizable needs
Imported chips, high-quality solutions, stable performance
Fully compatible. Senior talents to solve technical issues
DDM digital diagnosis real-time monitoring module status
Special test: All performance items have been tested and meet the required standards
Traffic Testing
Test the bit error rate and packet loss rate, to make them meet the corresponding standards and ensure the performance of transceivers.
Optical Performance Testing
Test the transceivers' eye diagram situation, receiving sensitivity, extinction ratio, wavelength, light-emitting, light-receiving, current and voltage, to ensure the signal quality, stability and reliability of the transmission.
End Face Testing
Check the end face of the transceivers and keep them clean for more stable data transmission, better performance, and durability.
Various Switch Tests
Every module is quality tested for compatibility in the multi-brand switches environment, guaranteeing flawless operations.
