Power and wavelength testing
Test the signal transmission strength and wavelength, ensure the signal decoding capability of the receiver, and maintain consistency in wavelength from the transmitter to the receiver.

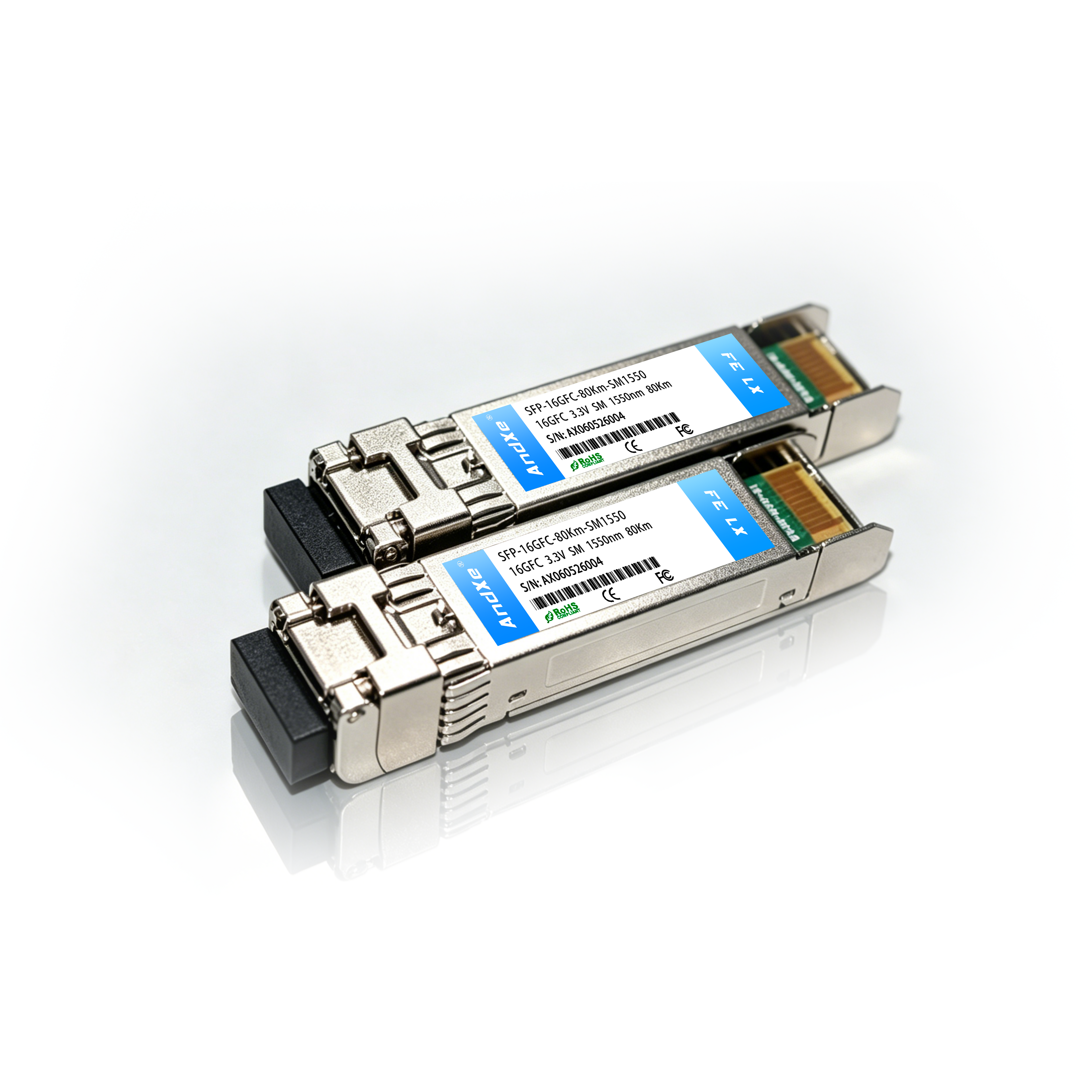

16GFC SFP+ Optical Module SFP-16GFC-80Km-SM1550
¥0.00
跳至产品信息
16GFC SFP+ Optical Module SFP-16GFC-80Km-SM1550
¥0.00
Product Overview
Supports 16GFC; adopts hot-swappable SFP packaging; full-duplex transceiver module; multiple wavelengths selectable: 850nm/1310nm/1550nm/CWDM/DWDM; complies with SFF-8431 MSA; compatible with 4G/8G/16G Fibre Channel standards; optical transmission distance selectable from 0 to 80km; duplex LC optical port; operating temperature, available in commercial and industrial grades; power supply voltage 3.3V; complies with RoHS environmental standards (lead-free); widely used in various fields such as broadcasting and television, telecommunications, mobile, China Unicom, aerospace, aviation, military, ships, power, railway, medical, transportation, communication, telecom operators, industrial control, power control, etc
Product Specifications
Supports 16GFC
Adopting hot-swappable SFP packaging
Full-duplex transceiver module
1550nm
Compliant with SFF-8431 MSA
Compatible with 4G/8G/16G Fibre Channel standards
Fiber transmission distance: 80KM
Duplex LC optical port
Operating temperature, available in commercial and industrial grades
Power supply voltage: 3V
Complies with RoHS environmental standards
Application
Ethernet, SONET/SDH, Fibre Channel
Our Advantages
Excellent skills and rich experience
Independent research and development, craftsmanship and intelligence, customizable needs
Imported chips, high-quality solutions, stable performance
Fully compatible. Senior talents to solve technical issues
DDM digital diagnosis real-time monitoring module status
Special test: All performance items have been tested and meet the required standards
Traffic Testing
Test the bit error rate and packet loss rate, to make them meet the corresponding standards and ensure the performance of transceivers.
Optical Performance Testing
Test the transceivers' eye diagram situation, receiving sensitivity, extinction ratio, wavelength, light-emitting, light-receiving, current and voltage, to ensure the signal quality, stability and reliability of the transmission.
End Face Testing
Check the end face of the transceivers and keep them clean for more stable data transmission, better performance, and durability.
Various Switch Tests
Every module is quality tested for compatibility in the multi-brand switches environment, guaranteeing flawless operations.
