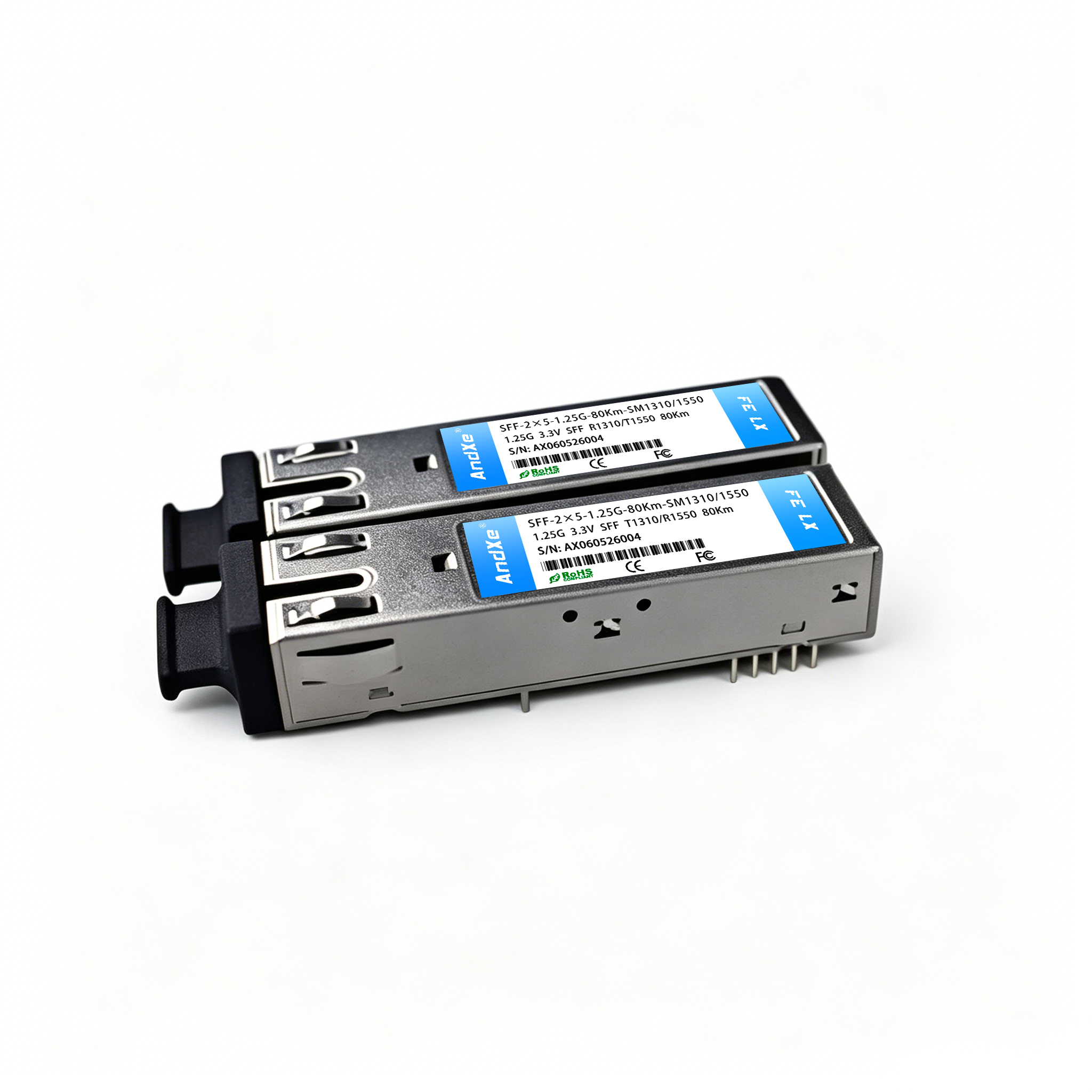

Product Description: Purely domestically produced components transmission distance up to 80km single power supply (3.3V) 2×5 SFF package; SC interface differential CML signal input and output SD output is LVTTL signal operating temperature: 0℃ to 70℃ complies with international safety standard IEC-60825 (Class 1 Laser)
Interconnecting Gigabit Ethernet 1.25Gb/s links using SONET/SDH equipment
Our strengths lie in our advanced technology, extensive experience independent R&D and meticulous manufacturing, customizable solutions with imported chips, stable performance comprehensive compatibility, and expert personnel to solve technical problems Our DDM digital diagnostic real-time monitoring module has undergone specialized testing and verification, achieving satisfactory performance across all specifications
Limiting conditions
parameter
symbol
Minimum value
Maximum value
unit
Remark
Storage temperature
Ts
-40
85
℃
–
Operating voltage
Vcc
-0.5
4.0
V
–
Welding temperature
–
–
260
℃
Welding time not exceeding 10 seconds
Input voltage
Vin
GND
Vcc
V
–
Recommended conditions
parameter
symbol
Minimum value
Typical value
Maximum value
unit
Operating voltage
Vcc
3.1
3.3
3.5
V
Operating temperature
Commercial
0
–
70
℃
Industrial grade
-40
–
85
℃
working speed
–
–
1250
–
Mbps
Operating current
Icc
–
–
300
mA
Transmission parameters (3.1V < Vcc < 3.5V)
parameter
symbol
Minimum value
Typical value
Maximum value
unit
Optical parameters
Transmitted optical power
Po(1310TX/1550RX)
-8
–
-3
dBm
Po(1550TX/1310RX)
-8
–
-3
center wavelength
λC(1310TX/1550RX)
1270
1310
1350
nm
λC(1550TX/1310RX)
1510
1550
1590
Output spectral width
Δλ(1310FP)
–
–
2.5
nm(RMS)
Δλ(1550DFB)
–
–
1
nm (-20dB Width)
Extinction ratio
ER
9
–
–
dB
Electrical parameters
Differential input voltage
Vdiff_in
200
–
1000
mV
transmit enable input voltage
Disable
2
–
VCC
V
Enable
0
–
0.8
V
Receive parameters (3.1V < Vcc < 3.5V)
parameter
symbol
Minimum value
Typical value
Maximum value
unit
Remark
Optical parameters
Sensitivity
Sen
–
–
-twenty three
dBm
1
saturation
PMAX
-3
–
–
dBm
(Recovery) Signal Detect — Asserted
Pa
–
–
-twenty four
dBm
(Disable) Signal Detect — Deasserted
Pd
-40
–
–
dBm
(Hysteresis) Signal Detect — Hysteresis
Phys
1
–
4
dB
center wavelength
λ(1310TX/1550RX)
1500
1550
1600
nm
Product Dimensions
Power and wavelength testing
Test the signal transmission strength and wavelength, ensure the signal decoding capability of the receiver, and maintain consistency in wavelength from the transmitter to the receiver.
Test the bit error rate and packet loss rate, to make them meet the corresponding standards and ensure the performance of transceivers.
Optical Performance Testing
Test the transceivers' eye diagram situation, receiving sensitivity, extinction ratio, wavelength, light-emitting, light-receiving, current and voltage, to ensure the signal quality, stability and reliability of the transmission.
End Face Testing
Check the end face of the transceivers and keep them clean for more stable data transmission, better performance, and durability.
Various Switch Tests
Every module is quality tested for compatibility in the multi-brand switches environment, guaranteeing flawless operations.
