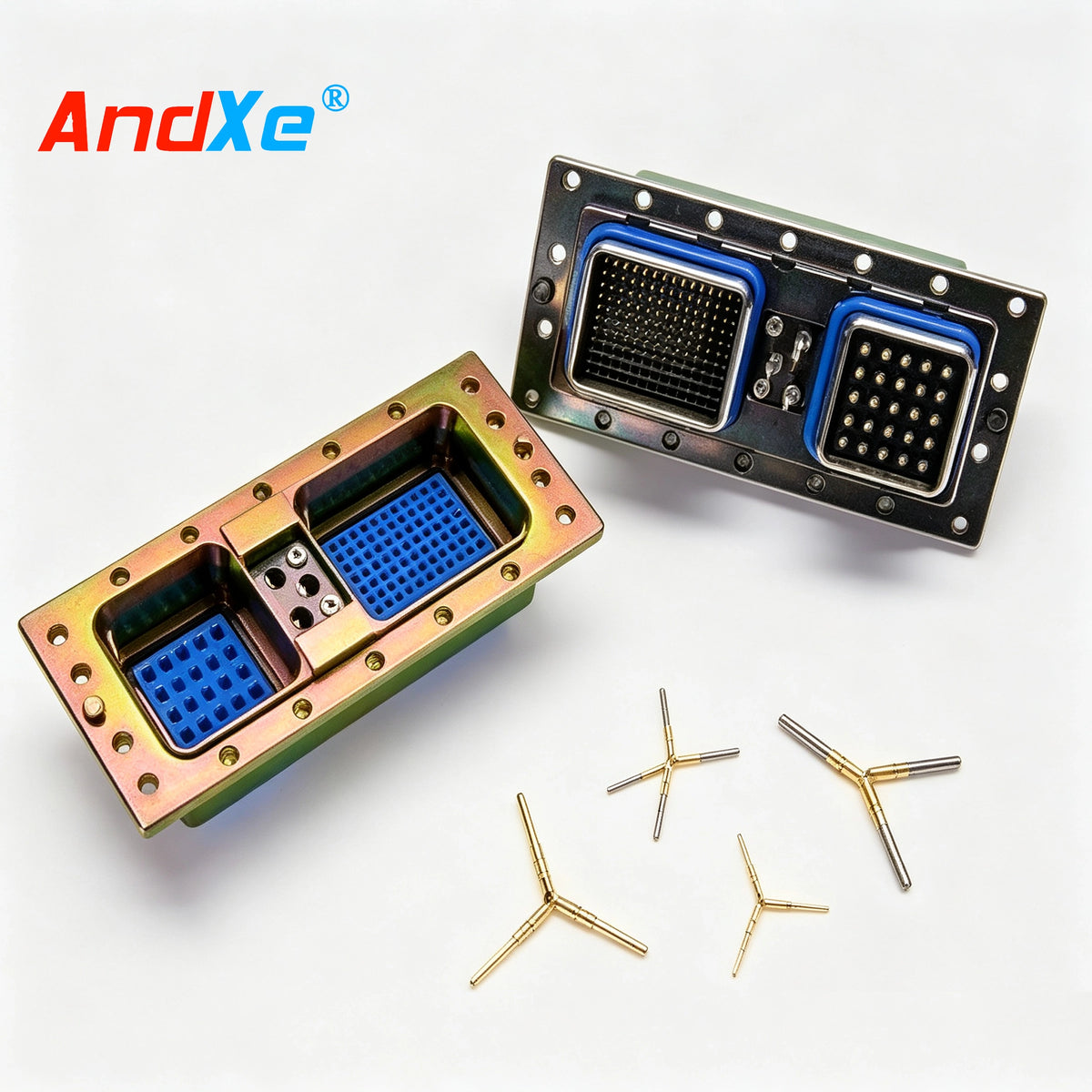

S7 Series Connectors
¥0.00
Product Overview
● Compliant with MIL-DTL-83527B standard
● Employs hexagonal coding for error prevention, featuring 99 error-proof key positions
● Housing options include different materials and plating to adapt to various environmental requirements
● Allows for the mixing of standard low-frequency, power, high-frequency, high-speed differential, and optical contacts for integrated signal transmission
● Modular design allows users to select different module combinations based on their needs
● Standard #8 RF contacts operate from 0 to 500MHz, while floating #8 RF contacts operate from 0 to 18GHz
Key Technical Specifications
● Mechanical Life: 500 insertion/removal cycles
● Shock: 50g half-sine wave acceleration (11ms)
● Vibration: Random vibration: 15～2000Hz, power spectral density 0.126g²/Hz, duration 8h
● Temperature Range: -65℃～+150℃
● Salt Spray: Class F: 96h, Class W: 500h, Class M: 500h (acidic atmosphere)
● Liquid Resistance: Resistant to various fuels, coolants, and other oils
● Insulation Resistance: ≥5000MΩ (500V DC)
