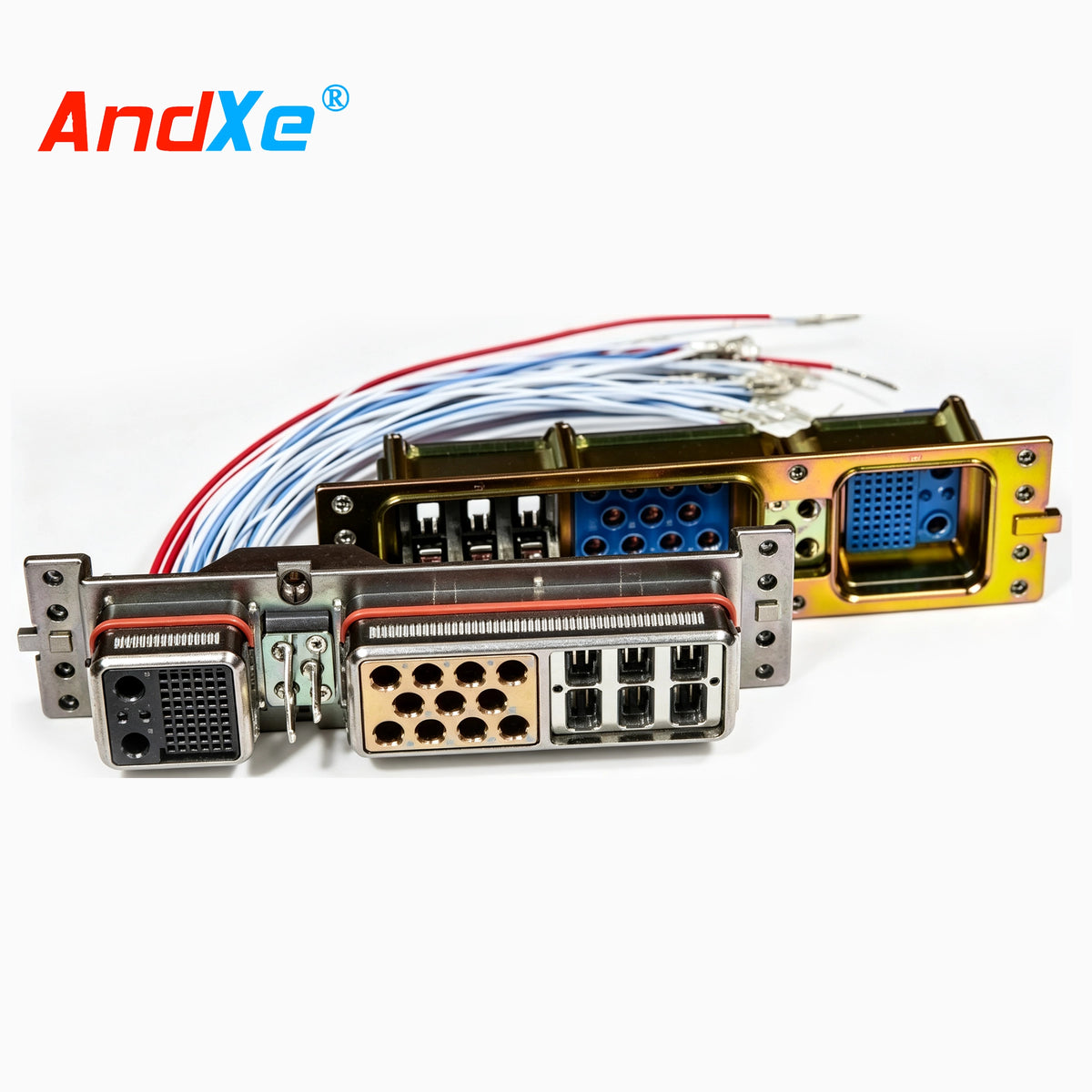

S6 Series Connectors
¥0.00
Product Introduction
● The contacts use MT pins, offering high integration and enabling 12~72 channels of high-density signal transmission
● Suitable for indoor chassis panel mounting environments
● Plugs can be selected for ribbon fiber optic cables, round fiber optic cables, and other types.
● Housing materials are available in nickel-plated aluminum alloy and nickel-plated copper alloy.
● Meets enterprise standard: Q/21EJ755
Rated current, contact resistance, and voltage resistance of low-frequency contacts
| Contact specifications | Cable specifications(AWG) | Rated current (A) |
Contact resistance max mΩ |
Voltage resistance (Y) | ||
| sea level | 15000 | 30480m | ||||
| 22D |
26 24 22 |
25 | 11 | 1300 | 500 | -- |
| 20 | 对8 |
3 5. 7.5 |
8.5 | 1500 | 500 | -- |
| 16 | 1816 |
7.5 10 13 |
5 | 1500 | -- | 500 |
| 12 | 1412 | 1723 | 2.5 | 1500 | -- | 500 |
| 10 | 10 | 40 | 1.2 | 1500 | - | 500 |
| 84 | 8 | 53 | 0.7 | 1500 | - | 500 |
| 4 | 6 | 80 | 0.35 | 1500 | -- | 500 |
