Power and wavelength testing
Test the signal transmission strength and wavelength, ensure the signal decoding capability of the receiver, and maintain consistency in wavelength from the transmitter to the receiver.

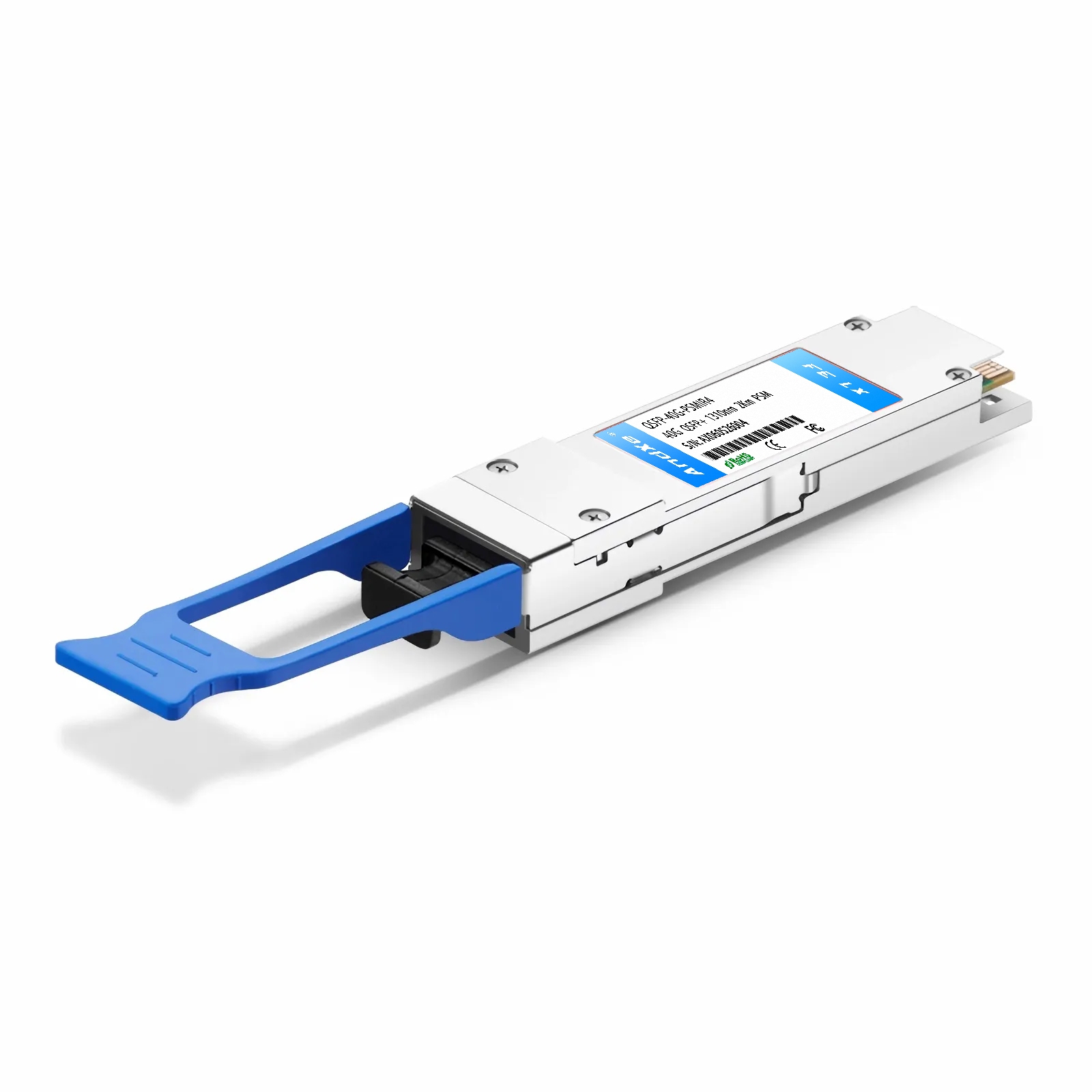

40G QSFP+ PSMIR4I QSFP+ 1310nm 2km MPO-12/APC Single-mode Fiber Transceiver Module
¥0.00
跳至产品信息
40G QSFP+ PSMIR4I QSFP+ 1310nm 2km MPO-12/APC Single-mode Fiber Transceiver Module
¥0.00
Product Overview
QSFP-40G-PSMIR4I compatible with 40GBASE-PSMIR4I QSFP+ optical module (single-mode fiber, 1310nm, 2km, MTP/MPO, DOM)
The QSFP+ optical module is suitable for 40GBASE Ethernet and enables single-mode fiber (SMF) transmission up to 2km at a wavelength of 1310nm via an MTP/MPO-12 connector. This module complies with the 100G PSM4 MSA standard. Digital diagnostics are also available via the I2C interface, compliant with the 100G PSM4 MSA specification, providing access to real-time operating parameters. With these features, this easy-to-install, hot-swappable optical module is suitable for a variety of applications, including data centers, high-performance computing networks, enterprise cores, and distribution layers.
Specifications
| Compatible model name | QSFP-40G-PSMIR4I | brand | AndXe |
| Packaging | QSFP+ | Maximum transmission rate | 41.2Gbps (4×10.3Gbps) |
| wavelength | 1310nm | Maximum transmission distance | 2km |
| connector | MTP/MPO-12 Male | Cable type | single-mode |
| transmitter type | DFB (Coarse Wavelength Division Multiplexing) | Receiver type | PIN |
| Transmit power | -9.4-0.5dBm | Receiver sensitivity | <-14.4dBm |
| Power Budget | 5dB | Receive overload | 0.5dBm |
| Maximum power consumption | ≤2.5W | Extinction ratio | >3.5dB |
| Mainframe FEC | support | Bit Error Rate (BER) | 1E-12 |
| Operating temperature | 0-70℃ (32-158°F) | Support Protocol | 100G PSM4 MSA |
Traffic Testing
Test the bit error rate and packet loss rate, to make them meet the corresponding standards and ensure the performance of transceivers.
Optical Performance Testing
Test the transceivers' eye diagram situation, receiving sensitivity, extinction ratio, wavelength, light-emitting, light-receiving, current and voltage, to ensure the signal quality, stability and reliability of the transmission.
End Face Testing
Check the end face of the transceivers and keep them clean for more stable data transmission, better performance, and durability.
Various Switch Tests
Every module is quality tested for compatibility in the multi-brand switches environment, guaranteeing flawless operations.
