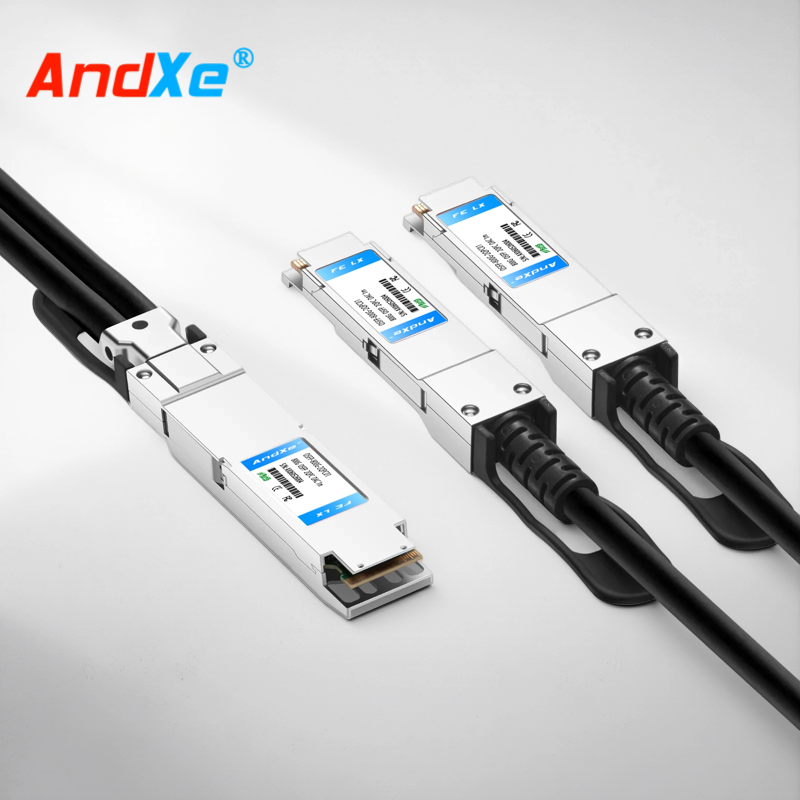

Compatible with 800G OSFP 8×100G PAM4 IHS/Top with heatsink to 2×400G QSFP112 4×100G PAM4 passive copper branch cable
¥0.00
Product Description:
Universally compatible 800G OSFP with top heatsink/IHS to 2x 400G QSFP112 splitter DAC cable (1 meter, passive, OSFP to 2x QSFP112, 28AWG)
This universally compatible 800G OSFP (Eight-Channel Small Form Factor Pluggable) to 2x 400G QSFP112 straight-through cable uses passive copper cabling, ensuring high-quality connections without the need for additional power. The cable complies with OSFP MSA (Multi-Source Protocol), QSFP112 MSA, CMIS Rev 5.0, and IEEE 802.3ck standards. It provides a high-speed connection between the heatsink/IHS port of an 800G OSFP typically used in switches and the two 400G QSFP112 ports typically used in NICs.
Due to its simple design and minimal components, DAC cables offer the lowest cost, lowest latency, and near-zero power consumption high-speed connection currently available. They are ideal for short-distance interconnects within telecom or data center equipment rooms, providing an efficient, energy-saving, and cost-effective connectivity solution.
Product parameters:
Near-zero power consumption, low latency, and low insertion loss.
Real-world testing ensures superior performance, quality, and reliability.
High reliability with no electronic components or optical connectors
. Compliant with IEEE industry BER standards, enabling stable operation in harsh environments.
8x 100G-PAM4 to dual 4x 100G-PAM4 adapter.
Minimum bending radius of 58mm for flexible cabling
. Simplified cabling provides cost-effective short-distance connections.
Hot-swappable OSFP, compliant with MSA Rev5.0, IEEE 802.3ck, and CMIS 4.0 standards.
Our strengths
lie in our advanced technology, extensive experience,
independent R&D and meticulous manufacturing, customizable
solutions with imported chips, stable performance,
comprehensive compatibility, and expert personnel to solve technical problems.
Our DDM digital diagnostic real-time monitoring module has undergone
specialized testing and verification, achieving satisfactory performance across all specifications.
Product Parameters
| Part Number | OSFP-800G-2QPC01 | brand | AndXe |
| Packaging | OSFP (IHS/with top heatsink) to 2xQSFP112 | Maximum data rate | 800Gbps |
| Cable type | Electrical port | Cable type | Passive branch DAC |
| Cable length | 1m (3ft) | Outer sheath material | PVC |
| Minimum bending radius | 40.5mm | Line gauge | 28AWG |
| Maximum power consumption |
0.1W (OSFP end) 0.1W (each QSFP112 end) |
Modulation method |
OSFP-8x100G-PAM4 QSFP112-4x100G-PAM4 |
| Commercial-grade temperature range | 0 to 70°C (32 to 158°F) | application | 800G/400G Ethernet |
| Support Protocol | OSFP MSA, QSFP112 MSA, IEEE 802.3ck, CMIS v5.0 | warranty | 5 years① |
