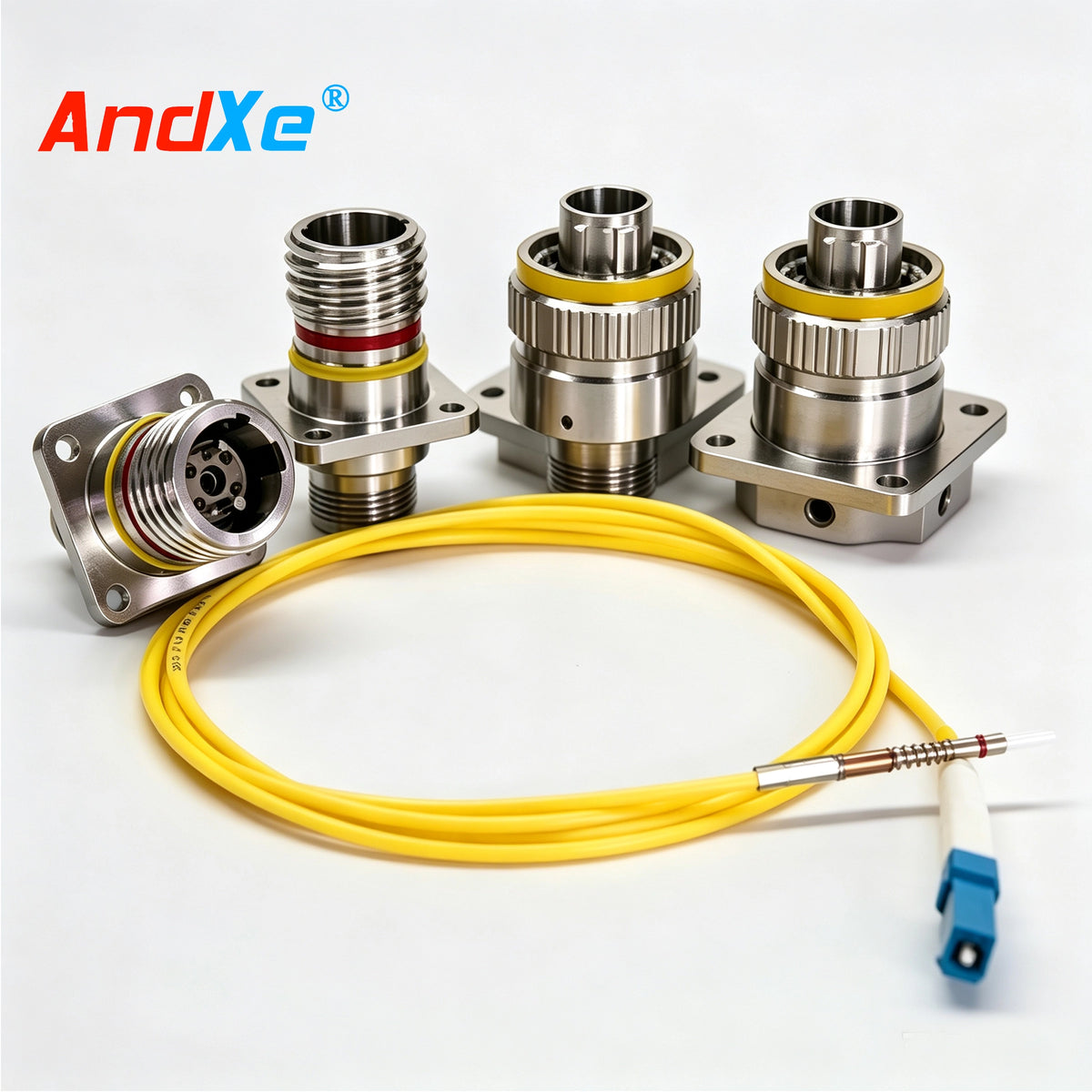

NGC (MIL-DTL-64266) series fiber optic connectors
¥0.00
Product Overview
● Compliant with MIL-PRF-64266B series standards
● Imperial double-threaded quick-connect with anti-loosening structure
● Three-key circumferential identification positioning for blind mating and mis-mating prevention
● Housing available in different materials and platings to suit various environmental requirements
● Uses removable standard 1.25mm neutral fiber optic contacts
● Employs removable ASR components for easy cleaning and maintenance
● Utilizes
mature and new technologies from connectors conforming to MIL-PRF-28876 and MIL-DTL-38999III series standards, offering superior mechanical and
environmental
Main Technical Specifications and
Mechanical Properties
● Housing Material and Plating
A- Aluminum alloy electroless cadmium plating (military green)
B- Stainless steel passivation
F- Aluminum alloy electroless nickel plating
● Mechanical Life: 500 cycles of insertion and removal
● Shock: 300g
● Vibration
Sinusoidal vibration: 60g
Random vibration: 1.0g / Hz
Environmental Performance
● Temperature Range: -55°C to +165°C
● High Temperature Lifetime: 165°C, 1000h
● Salt Spray: Class A: 500h, Class B: 500h, Class F: 48h
● Temperature Cycling: -55~165°C, 1000 cycles
Optical Performance
● Insertion Loss: ≤0.5dB
AndXe Networks
Corporate Email: susie@andxe.com
Corporate Mobile: 182 8033 7727
This product only displays some parameters. Please contact us if needed.
