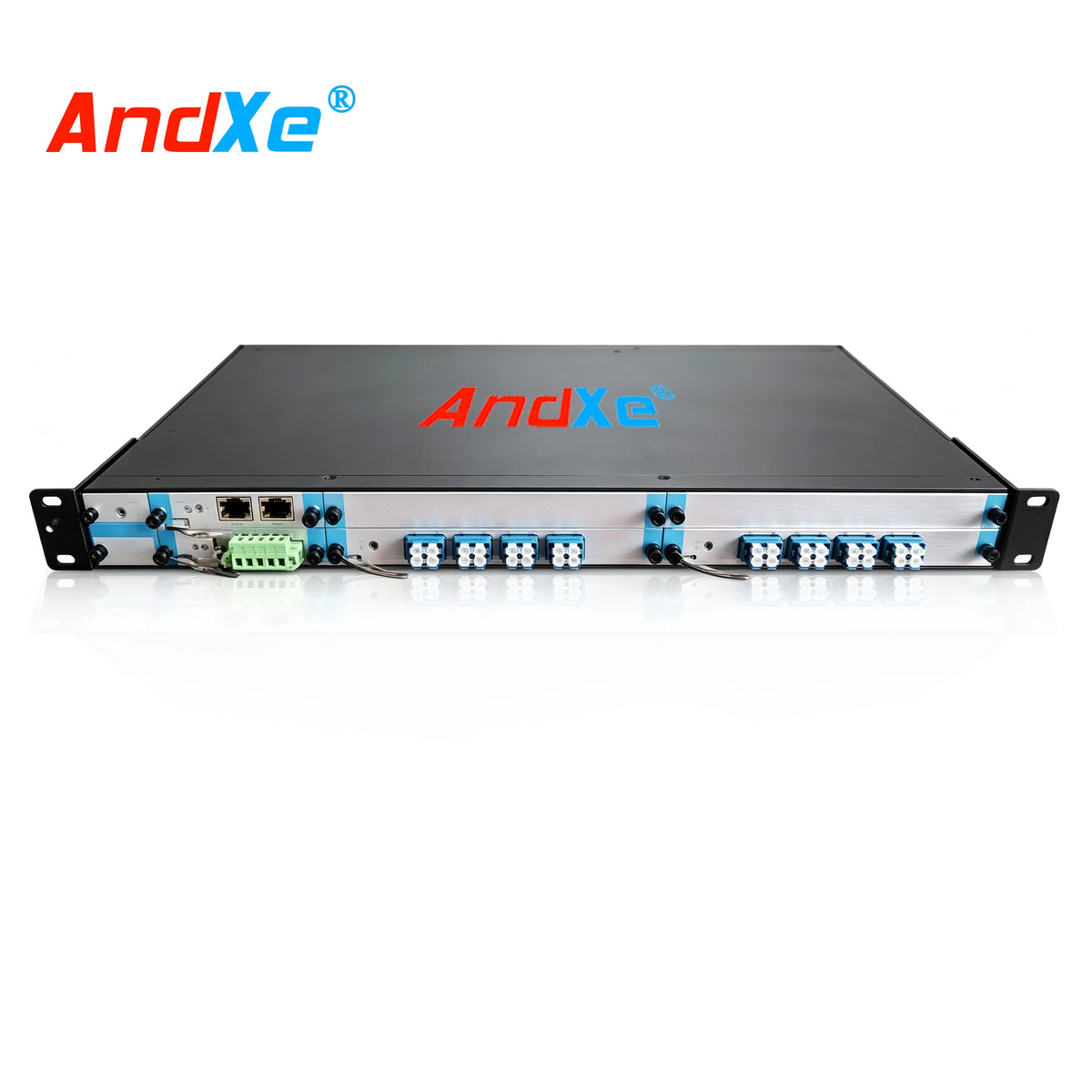

MEMS 24×24 Matrix Optical Switch
¥0.00
Product Description:
An optical switch is an optical path control device that controls and switches optical paths. It plays a crucial role in optical communication applications. Optical switches are mainly used in: multi-channel optical monitoring in optical transmission systems, automatic switching of multiple light sources/detectors in LANs, and multi-point dynamic monitoring systems for optical sensors; in optical testing systems for testing optical fibers, optical devices, networks, and optical cables in field engineering; and for the assembly and adjustment of optical devices.
Product Features
● Low insertion loss
● High stability and reliability
● Optical path switching can be configured via serial network commands
● Fast switching speed
Applications
● Laboratory R&D
● System Monitoring
● Metropolitan Area Networks
● Multi-channel Optical Monitoring
● Fiber Optic Sensing
● Remote Fiber Optic Monitoring Systems
Technical parameters
| model | MEMS 24×24 Matrix Optical Switch |
| Operating wavelength | 1260 ~ 1650nm |
| Test wavelength | 1310/1550 nm |
| Insertion loss | <4.0dB |
| Repeatability | ≤±0.1 dB |
| Return loss | ≥45dB |
| Crosstalk | ≥50dB |
| Wavelength-dependent loss | ≤0.50 |
| Polarization-dependent loss | ≤0.15 |
| Switching Time | ≤ 50ms |
| Fiber type | SM (9/125um) |
| Connector type | LC/PC |
| Monitoring port | RJ45, RS-232 |
| working power supply | AC: 85～264V (50/60Hz) or DC: 36～72V |
| Operating temperature | -10 to +55℃ |
| Storage temperature | -40 to +80. C |
| Chassis type | 19-inch standard 1U rack mount (483 × 400 × 44 mm) |
