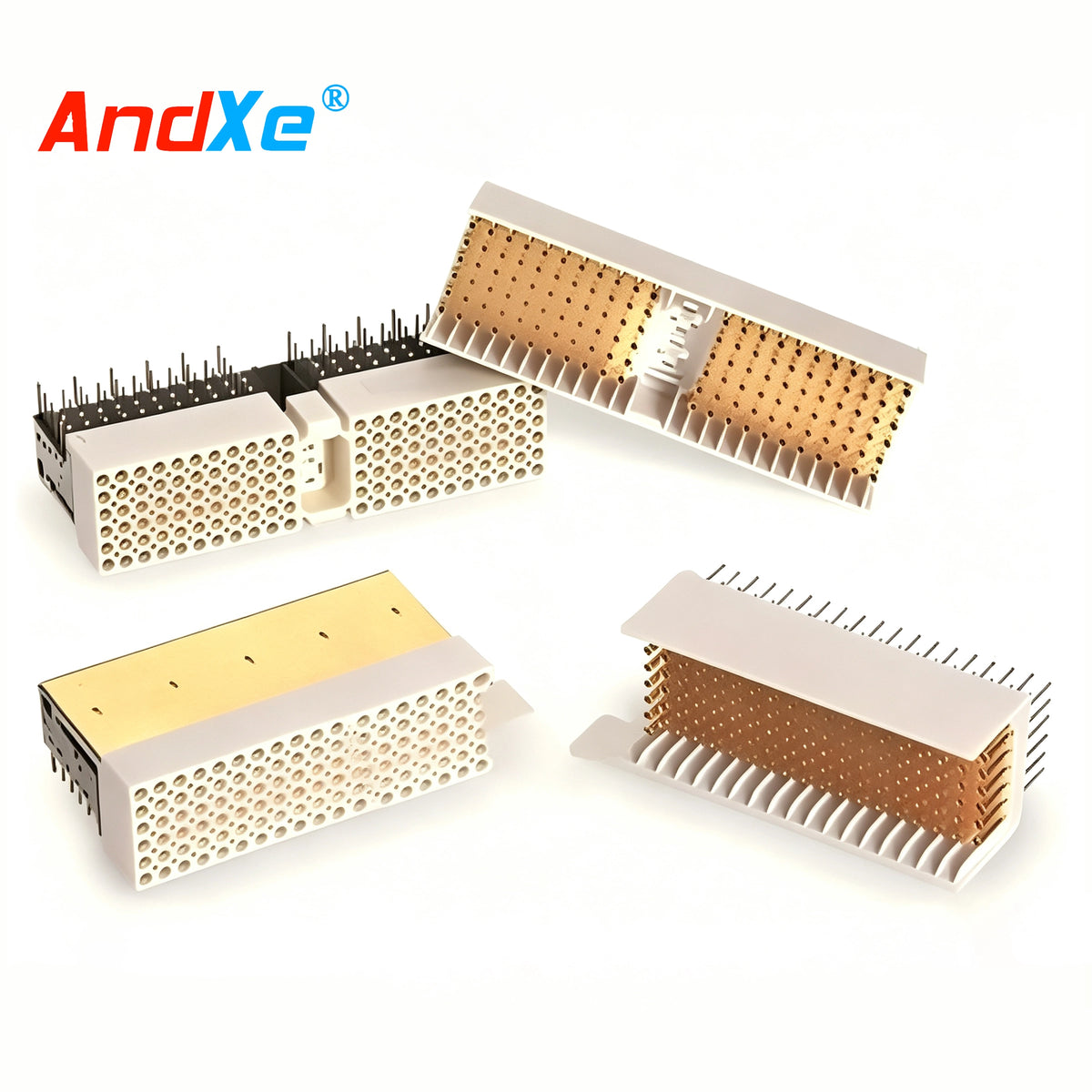

K2 High-Speed Backplane Connector
¥0.00
Product Overview
● Complies with CPCI bus requirements, can replace ordinary 2mm pitch leaf spring connectors, offering reliable contact performance and environmental resistance.
● Electrical and environmental performance complies with IEC61076-4-101
● Employs highly reliable hyperboloid spring holes, suitable for harsh environments with strong vibration and shock.
● Suitable for high-speed data transmission between motherboard and daughterboard. Excellent signal integrity.
● Transmission rate up to 3.125Gbps. Suitable for military applications such as aerospace and shipbuilding.
The K2 series connectors feature highly reliable
spring-loaded sockets, which can withstand harsh working conditions such as high-intensity vibration and shock. The vibration and shock conditions are far higher than those of ordinary leaf spring structure products, and the mechanical life is more than 5,000 cycles, which is much higher than the 500 cycles of ordinary leaf spring structure products.
