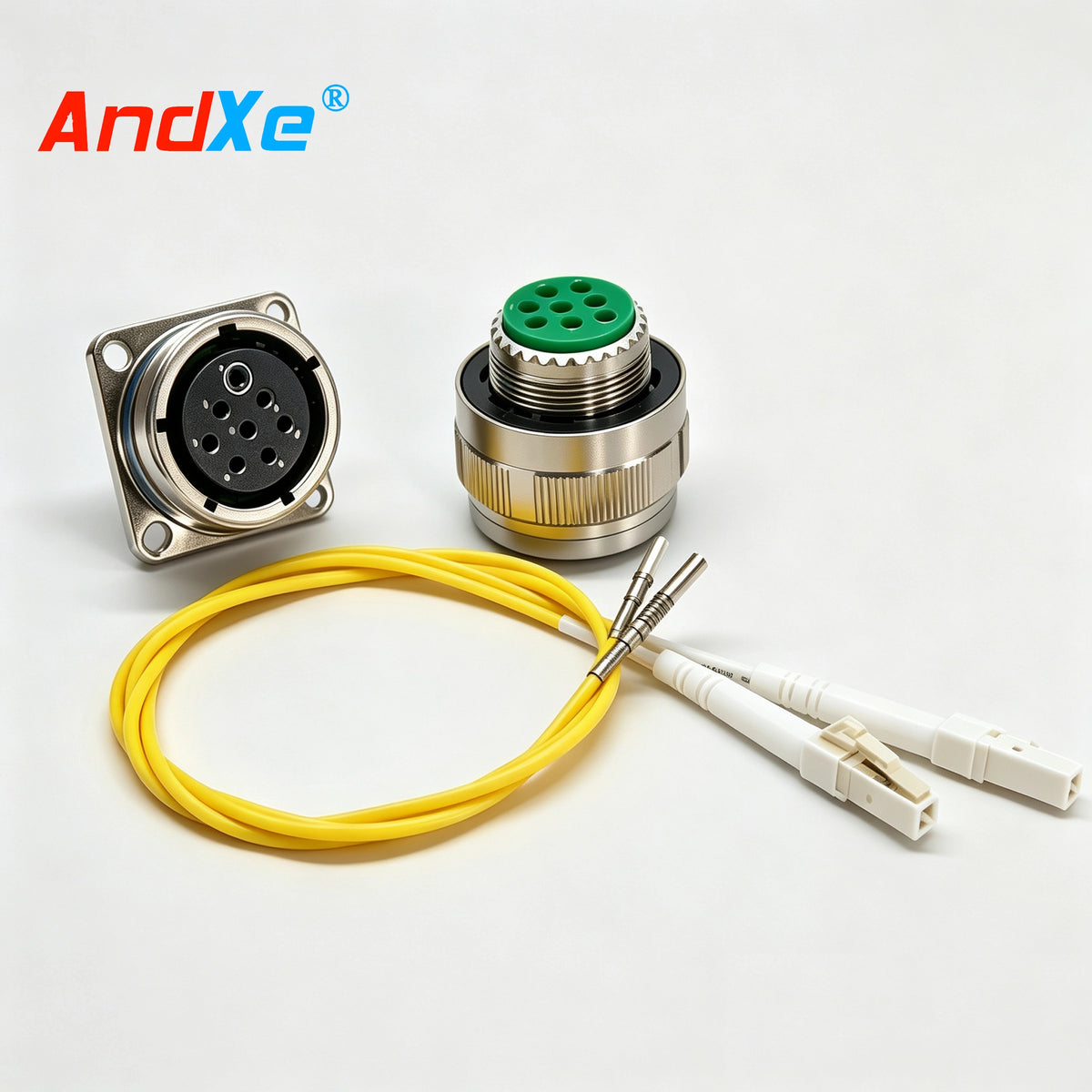

J599III Series Fiber Optic Connectors
¥0.00
Product Overview
● Compliant with GJB599B (MIL-DTL-38999) III series interface
● Housing available in different materials and plating to suit various environmental requirements
● Five-key positioning with blind mating and anti-misfit mating functions
● Three-thread quick connection with anti-loosening mechanism
● Precision mating achieved using ceramic pins and sleeves
● Multiple tail accessory options available
● Adapter socket available (optional hermetically sealed) to eliminate fiber optic cable constraints
Main Technical Specifications
Mechanical Performance
● Mechanical Life: 500 insertion/extraction cycles
● Shock: 3ms half-sine wave, acceleration 2940m/s²
Vibration: Sine vibration frequency 10～2000Hz, acceleration 196m/s²
Tensile Strength: ≥68N (single-core cable)
Environmental Performance
● Temperature Range: -55°C~+125°C (depending on optical cable temperature)
● Salt Spray: Class K: 500h Class F: 48h Class W: 200h Class MWW: 192h (acidic atmosphere)
● Liquid Resistance : Resistant to various fuels, coolants, and other oils
Optical Performance
● Insertion Loss: ≤1dB
External dimensions
AndXe Networks
Corporate Email: susie@andxe.com
Corporate Mobile: 182 8033 7727
This product only displays some parameters. Please contact us if needed.
