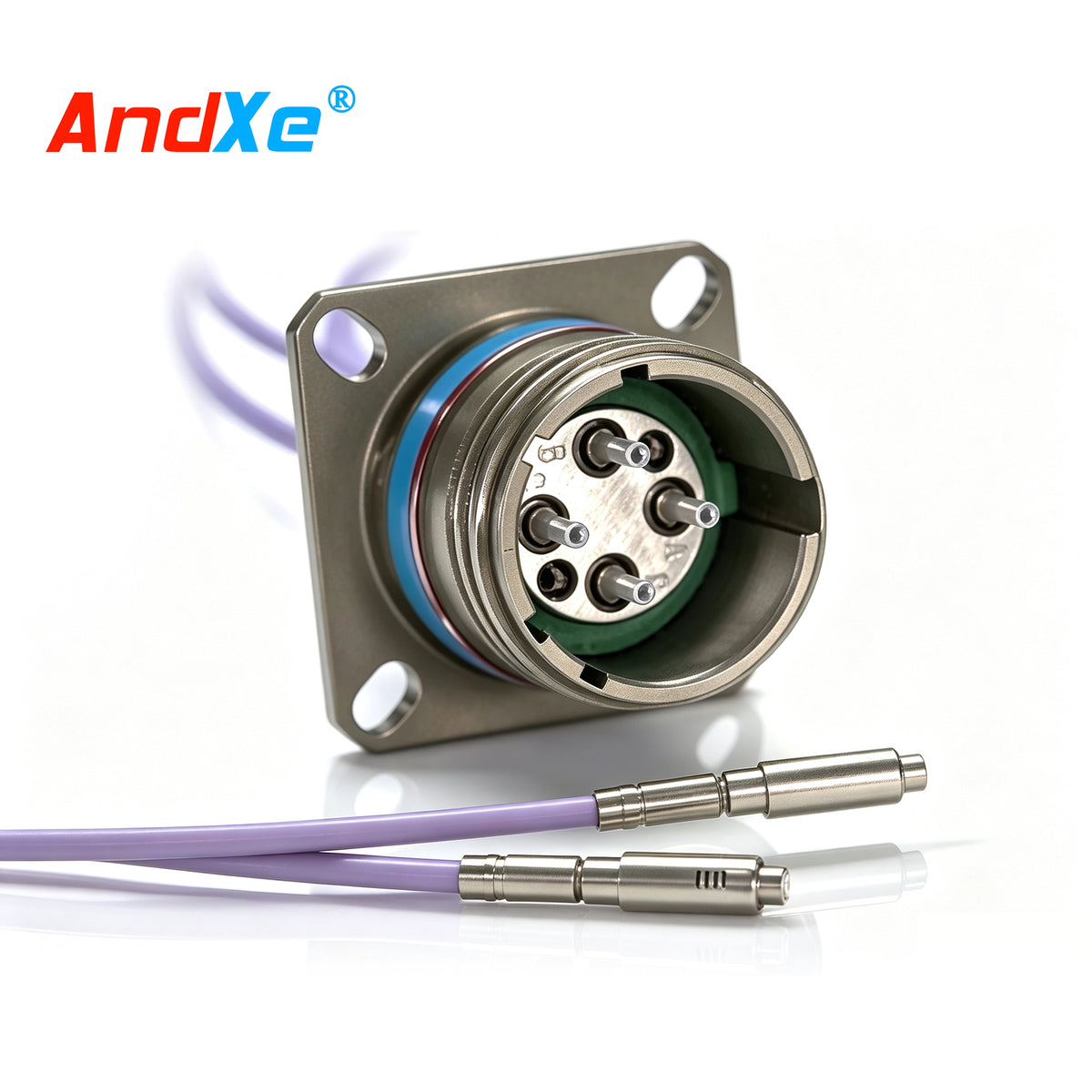

J599E8 Series Fiber Optic Bundle Expander Connector
¥0.00
Product Overview
● Complies with GJB599B (MIL-DTL-38999) III series standards
● Suitable for aviation, electronics, and shipbuilding systems for multi-channel optical communication
● Employs a beam-expanding lens encapsulation; fiber optic connection is non-contact
● The ceramic sleeve is a closed O-type, significantly improving the product's insertion and removal lifespan
● Due to the beam-expanding technology, the fiber optic contacts have strong resistance to dust and dirt
● Contact installation and removal tool M81969/14-03 for easy operation
Main Technical Specifications
Mechanical Performance
● Mechanical Life: 2000 cycles of insertion and removal
● Shock: Peak acceleration 2940m/s² , duration 3ms, velocity change rate 5.61m/s
● Vibration: Sinusoidal vibration frequency 10～2000Hz, power spectral density 0.4G² / Hz, root mean square acceleration 23.1G
● Tensile Strength: ≥68N (2mm contact jumper)
Environmental Performance
● Temperature Range: -55°C~+125°C (depending on optical cable temperature)
● Salt Spray: Class K: 500h Class F: 48h Class W: 500h Class MWW: 192h (acidic atmosphere)
● Gas Tightness (suitable for gas-tight adapters): Gas leakage rate ≤1X10⁻⁹ Pa.m² / s internal and external pressure difference 1 atm
Optical Performance
● Insertion Loss: ≤0.6dB @850nm; ≤0.8dB @1310nm
● Return loss: ≥20dB @850nm; ≥45dB @1310nm
Contact arrangement (taking the plug mating side as an example)
External dimensions
AndXe Networks
Corporate Email: susie@andxe.com
Corporate Mobile: 182 8033 7727
This product only displays some parameters. Please contact us if needed.
