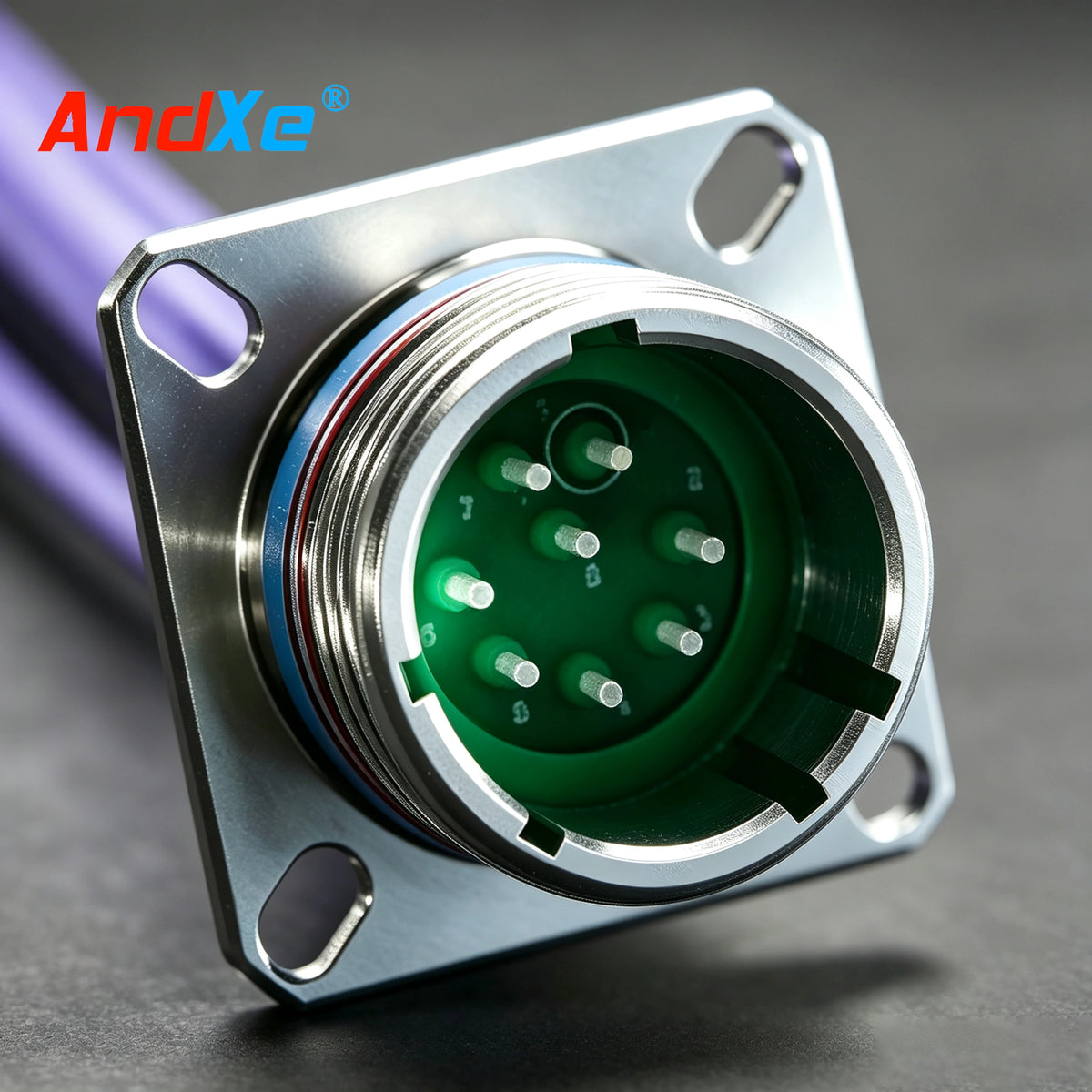

J599Ⅲ Series Fiber Optic Bundle Expander Connector
¥0.00
Product Overview
● Compliant with GJB599B (MIL-DTL-38999) III series interface
● Housing can be made of different materials and platings to adapt to different environmental requirements
● Five-key positioning with blind mating and anti-misfit mating functions
● Three-thread quick connection with anti-loosening mechanism
● Contacts use collimating lenses for non-contact connection, end face is not easily damaged, long mechanical life, large output beam, insensitive to dust, and strong environmental resistance
Main Technical Specifications
Mechanical Performance
● Mechanical Life: 2000 insertion/extraction cycles
● Shock: Peak acceleration 980 m/s²
Vibration: Sinusoidal vibration frequency 10～2000Hz, acceleration 147 m/s²
Tensile Strength: ≥68N (single-core cable)
Environmental Performance
● Temperature Range: -55°C~+125°C (depending on cable temperature)
● Salt Spray: Category K: 500h Category F: 48h Category W: 500h Category MWW: 192h (acidic atmosphere)
● Liquid Resistance : Resistant to various fuels, coolants, and other oils
Optical Performance
● Insertion Loss: ≤0.6dB (multimode), ≤1.2dB (single-mode)
External dimensions
AndXe Networks
Corporate Email: susie@andxe.com
Corporate Mobile: 182 8033 7727
This product only displays some parameters. Please contact us if needed.
