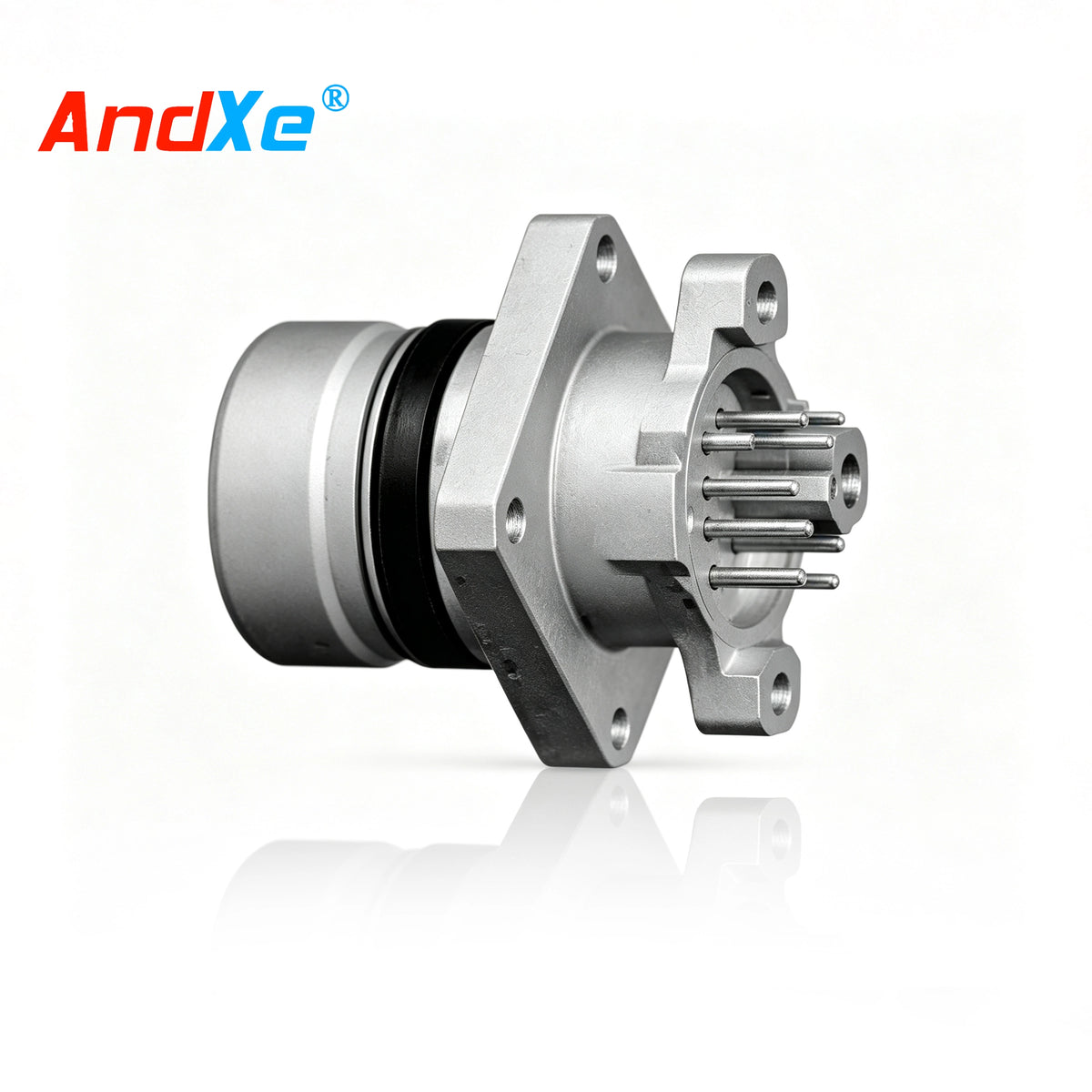

J599Ⅲ Series Dual-Flange Mounting Printed Circuit Board Socket
Product Overview
● Interface dimensions conform to J599 series
● Three-pronged threaded quick connection
● Contacts are PCB soldered type, pins are anti-misalignment
● Socket has a double flange structure, the front flange can be fixed to the mounting panel, and the rear flange
● has threaded holes for fixing the PCB, compact structure, and high reliability.
Main Technical Specifications
Mechanical Properties
● Housing: Aluminum alloy, stainless steel, titanium alloy
● Insulator: Thermoplastic or thermosetting material
● Sealing body and sealing ring: Silicone rubber
● Contacts: Gold-plated copper alloy
● Lifespan: 500 mating cycles
Environmental Performance
● Temperature Range
W Class: -65°C to +175°C
F, FT, Fm, K, TA Class: -65°C to +200°C
