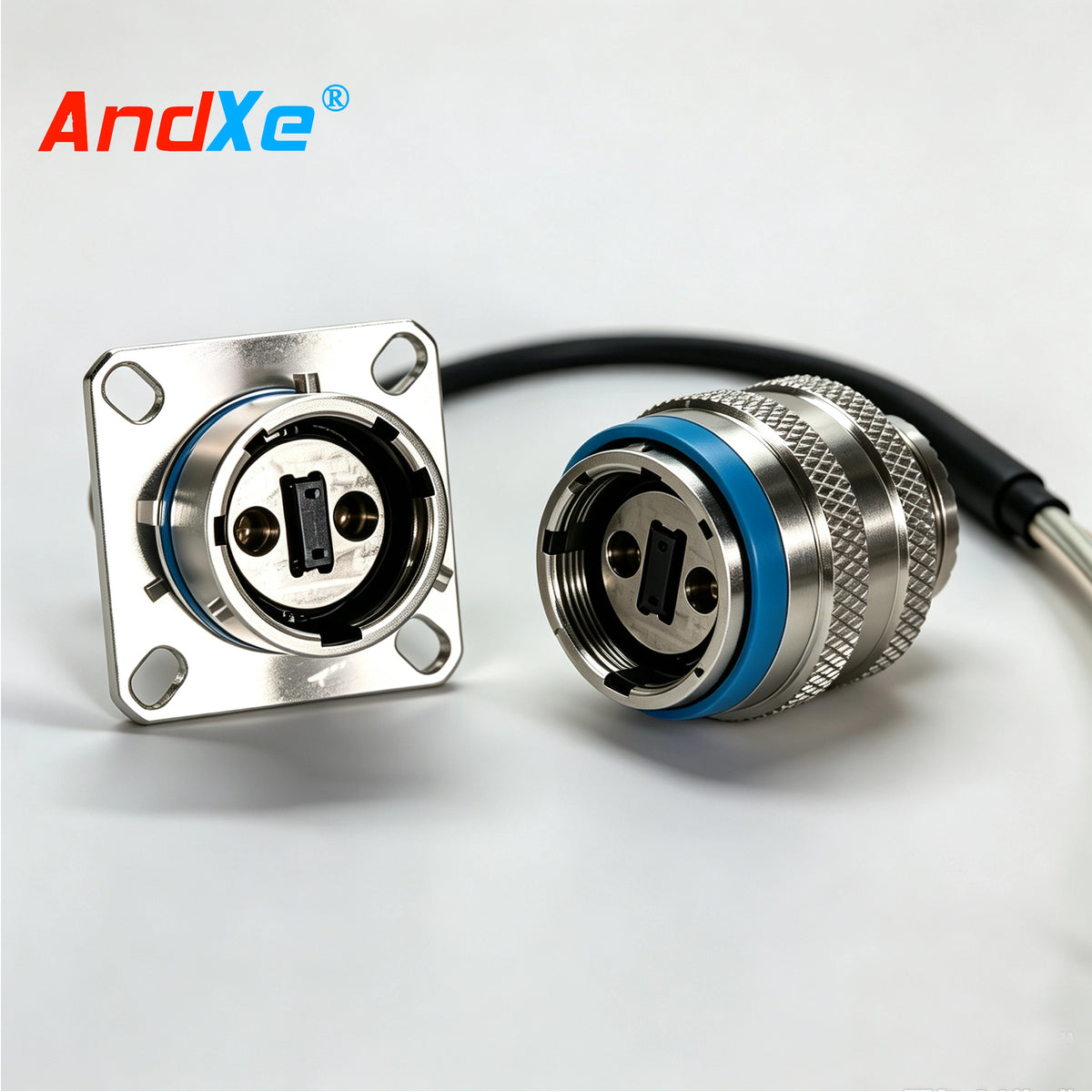

GYMB series fiber optic connectors
¥0.00
Product Overview:
This series of products is compatible with GJB599Ⅲ series mounting dimensions, features bayonet-type connections, and is a high-density, environmentally resistant circular fiber optic connector developed using 12-pin and 24-pin MT contacts. It employs three-level guidance and positioning, and features five-key identification, anti-misfit insertion, anti-misalignment insertion, and blind insertion capabilities. Different materials and platings can be selected for the housing to adapt to various environmental requirements.
Main Technical Specifications
Mechanical Performance
● Mechanical Life: 500 insertion/extraction cycles
● Shock: Acceleration 490m/s² , 11ms
● Vibration: 10～2000Hz, power spectral density 0.06g² / Hz
● Tensile Strength : ≥68N (for contacts compatible with Φ2 optical cables)
Environmental Performance
● Temperature Range: -40℃～+80℃
● Salt Spray: Class K: 500h, Class F: 48h, Class W: 200h, Class MW: 192h (acidic atmosphere)
Optical Performance
● Insertion Loss: ≤0.6dB
AndXe Networks
Corporate Email: susie@andxe.com
Corporate Mobile: 182 8033 7727
This product only displays some parameters. Please contact us if needed
