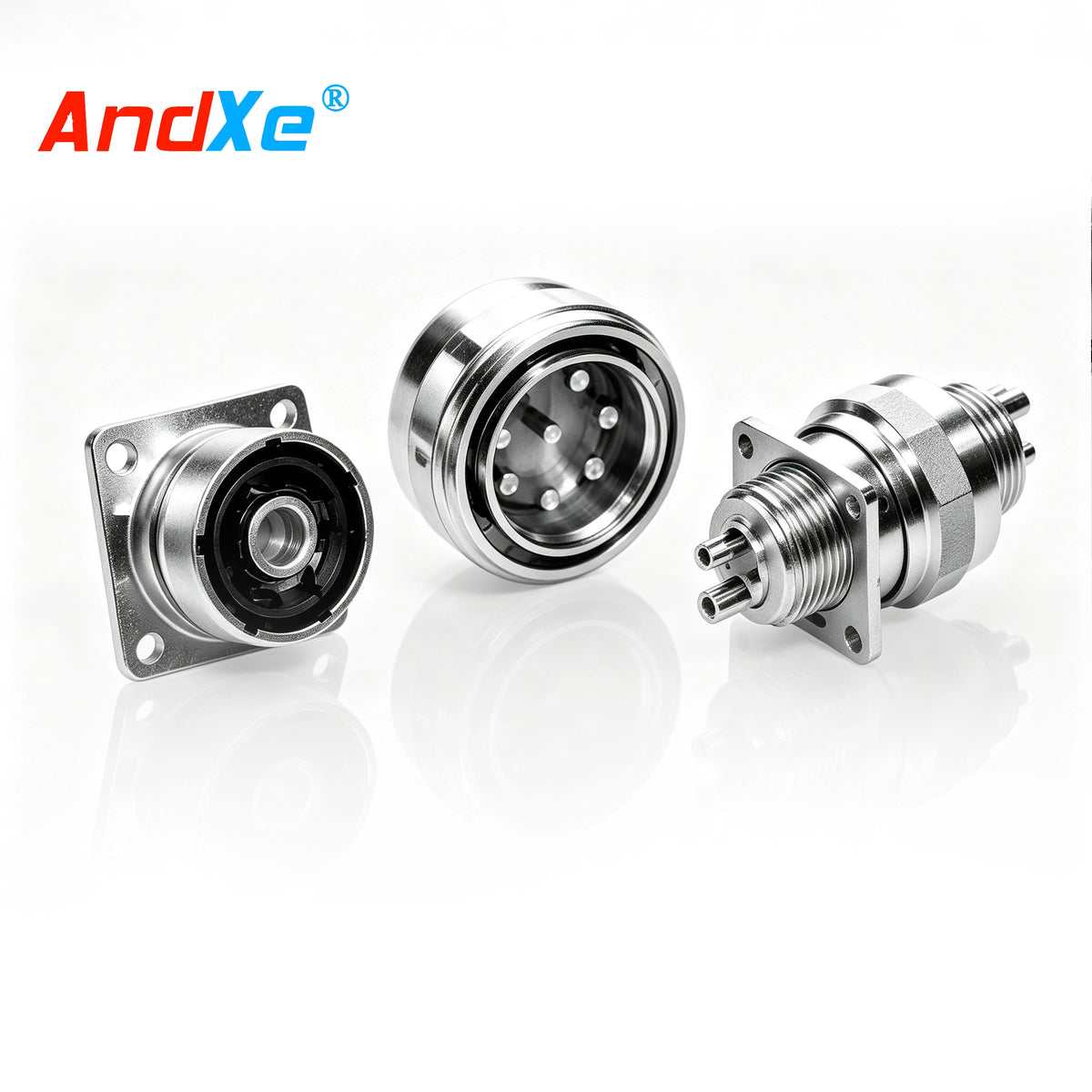

GJB599 Power Supply Series Electrical Connectors
Product Overview
● Dimensions conform to GJB 599A (MIL-C-38999) series III
● For high-power signal transmission between equipment
● Rated operating current: 7.5A-185A
● Threaded quick-connect with anti-disengagement mechanism
● End termination: crimp or solder
● Plugs and sockets can be fitted with pins or holes
Applications
● This product is used for high-power signal transmission between equipment.
Operating Environment
● This product is used in complex environments with strong vibration, rain, sandstorms, and humidity.
Mechanical Properties
● Housing: Aluminum alloy, stainless steel
● Plating: W - Tin-plated military green, F - Chemically warm nickel, K - Purified stainless steel
● Insulator: Thermoplastic or thermosetting material
● Sealing body and sealing ring: Silicone rubber
● Contacts: Gold-plated steel alloy
● Lifespan: 500 insertion/removal cycles
● Shock: Peak 300g half-sine wave acceleration (3ms)
● Dynamics: Frequency 100~1000Hz, power spectral density 1g²/Hz, corresponding RMS value 41.7g
