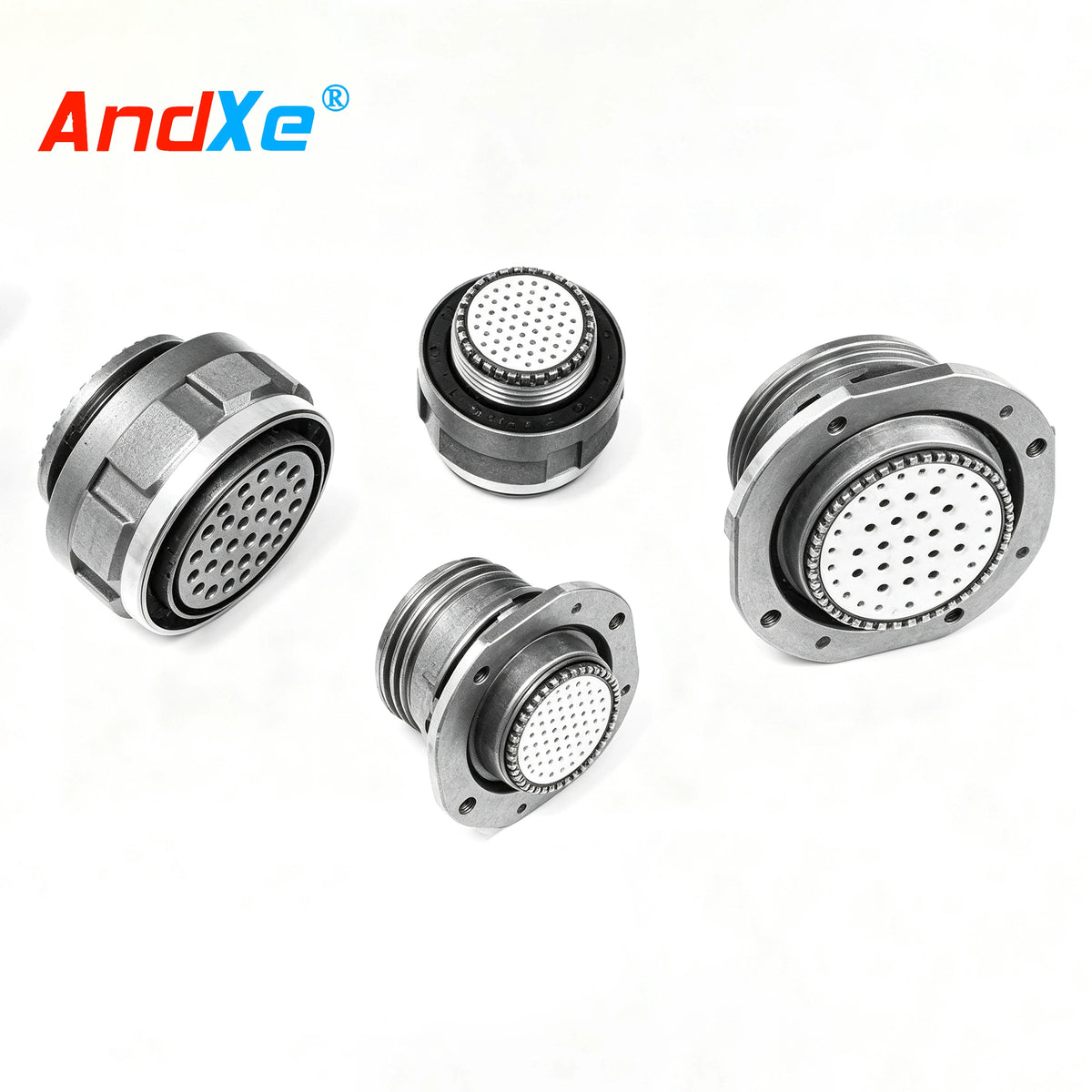

GJB599Ⅲ Electrical Connector
¥0.00
Product Overview
● Complies with GJB599A (MIL-DTL-38999K) III Series
● Three-thread quick-connect with anti-loosening mechanism
● Smallest size, lightest weight, shortest housing
● Electromagnetic shielding
● Removable crimped contacts with anti-misalignment design
● Available in fire-resistant housing, composite material housing, aluminum alloy housing, and various coatings
● High-strength vibration resistance at high temperatures, suitable for use in harsh, windy, and humid environments.
Application Areas
● The product is used in complex environments such as strong vibration, wind and sand and humidity.
Main Technical Specifications
Mechanical Performance
● Mechanical Life:
500 cycles of insertion and extraction
● Impact:
3ms half-sine wave acceleration peak value: 300g
● Vibration:
Sinusoidal vibration frequency: 10～2000Hz, acceleration: 294m/s²;
Random vibration frequency: 100～1000Hz, power spectral density: 1g²/Hz
Environmental Performance
● Temperature Range:
Class B -65℃～+175℃
Class E, F -65℃～+200℃
● Salt Spray: Tested according to GJB1217 Method 1001:
Class B 500h; Class E 1000h; Class F 48h
Electrical Performance
● Withstand Voltage: V
| Job level | M | M | I | II |
| sea level | 1300 | 1000 | 1800 | 2300 |
| 21000m | 800 | 600 | 1000 | 1000 |
Note: Different contact arrangements have different operating classes; see contact arrangement for details. Insulation resistance:
≥5000 MΩ under normal conditions; Electrical continuity between enclosures:
≥100 MΩ under humid conditions
Class E ≤5 MΩ;
Class B ≤2.5 MΩ; Class F ≤1.0 MΩ.
● Contact resistance and rated current of contacts:
