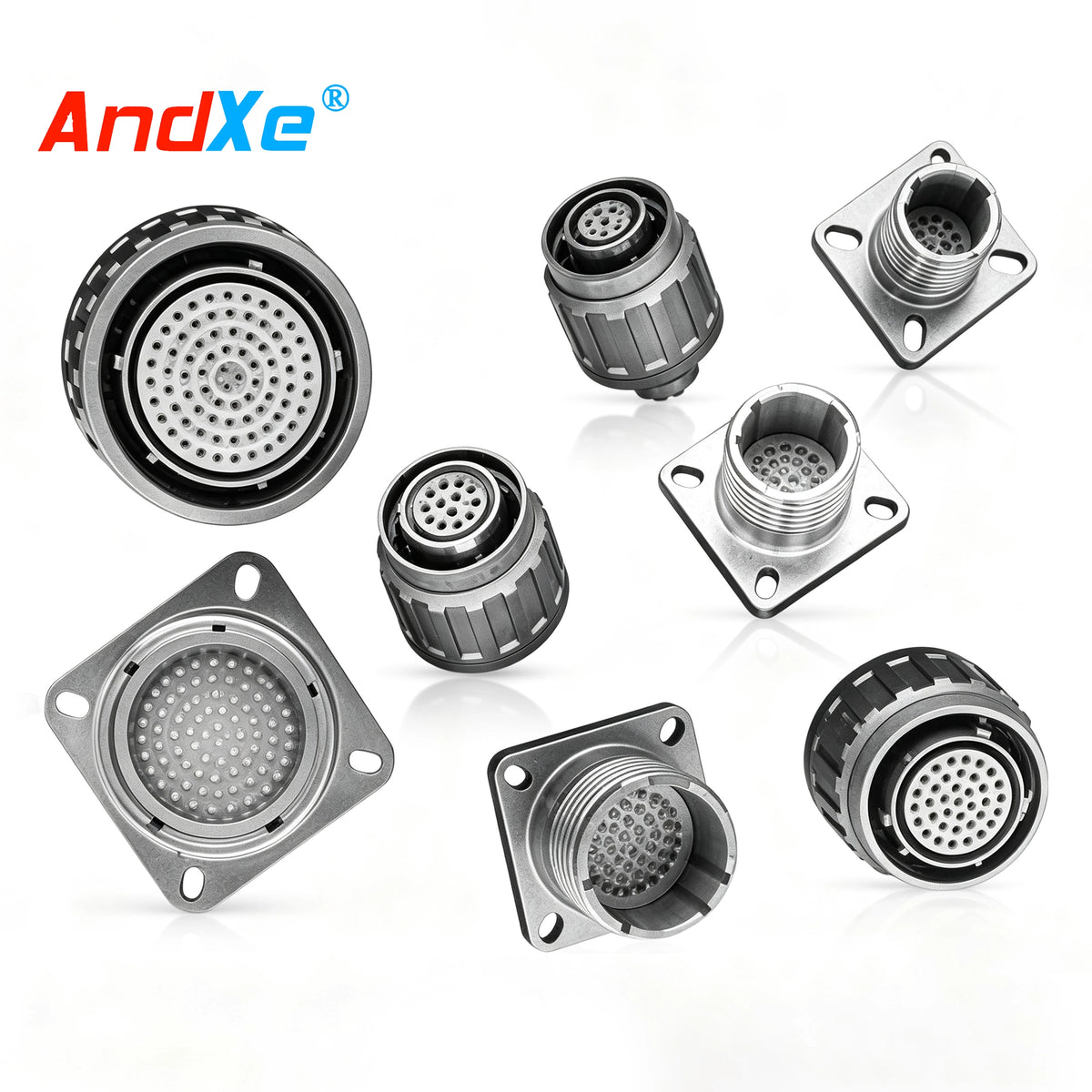

GJB599Ⅲ Series Composite Material Electrical Connectors
¥0.00
Main Technical Specifications
Mechanical Performance
● Mechanical Life: 1500 cycles
● Vibration: Sine wave: 60g, with temperature cycling and simulation accessories (36 hours)
Random: 44.1 grms at high temperature, 49.5 grms at ambient temperature
● Shock: 3 ms half-sine wave acceleration peak 300g
Contact holding force: (minimum force in Newtons)
Environmental Performance
● Temperature Range
Class B: -65℃ to +175℃;
Class E & F: -65℃ to +200℃
● Salt Spray: 2000h;
Sealing: Mating connectors meet MIL-DTL-38999K low-pressure immersion requirements
Humidity: 24 hours, 10 cycles according to MIL-DTL-38999K;
Liquid Resistance: Resistant to various fuels, coolants, and solvents;
Electrical Performance
● Contact Resistance and Rated Current
