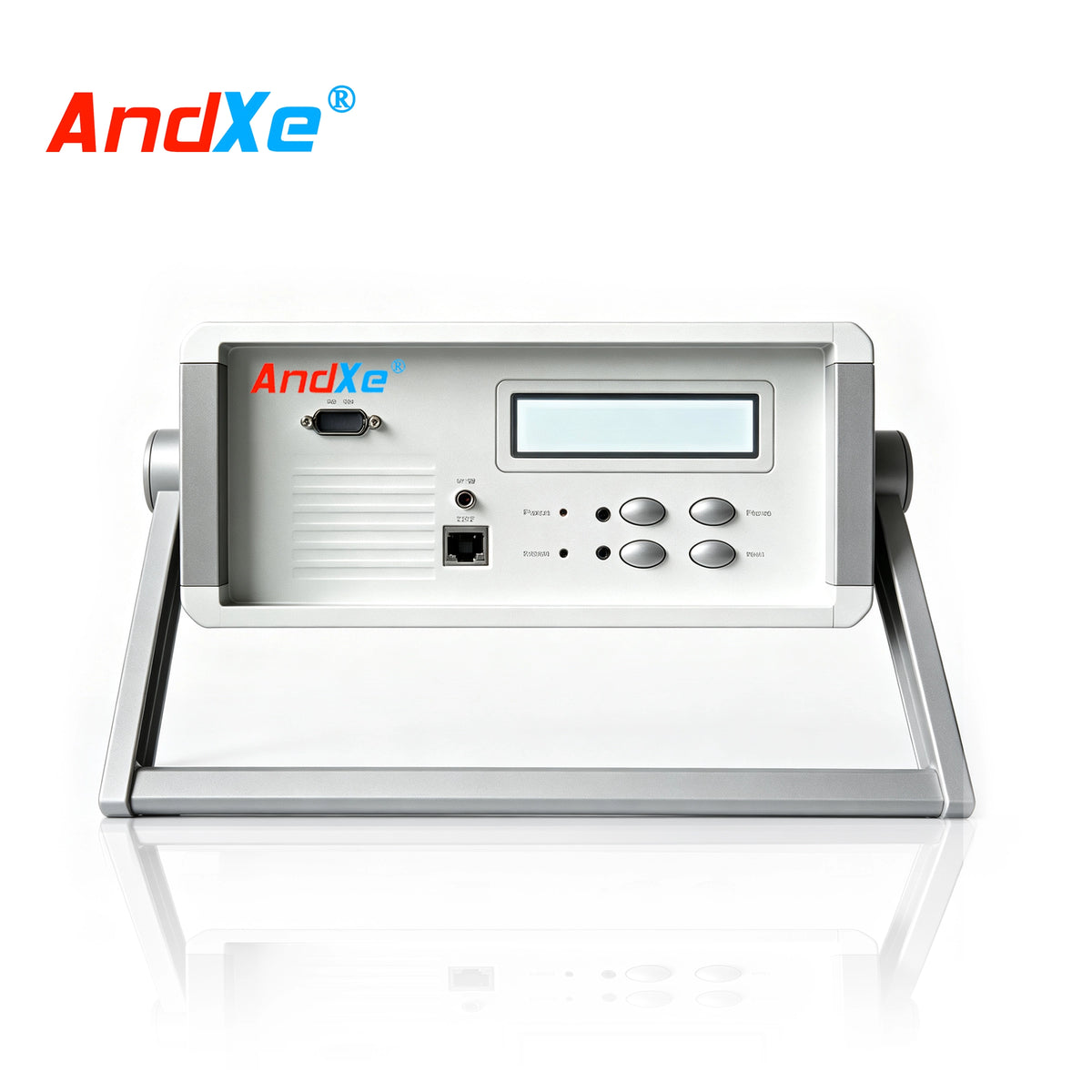

Desktop light switch
¥0.00
Product Details:
The 1 × N desktop optical switch is an optical path control device that controls and switches optical paths. This product allows manual selection and switching of the working optical path via panel buttons, or automatic scanning of the optical path to be monitored and switched via RS232 serial port or Ethernet port. In optical communication projects, it is mainly used for: multi-channel optical monitoring in optical transmission systems, automatic switching of multiple light sources/detectors in LANs, and multi-point dynamic monitoring systems for optical sensors; testing of optical fibers, optical devices, networks, and field engineering optical cables in optical testing systems; and optical device assembly and adjustment.
Technical parameters
| model | unit | Desktop light switch | |||
| Insertion loss | dB | 1 < N ≤ 12 | 16 < N ≤ 32 | 32<N≤64 | 64 < N ≤ 128 |
| Typ: 1.0 Max: 1.2 | Typ: 1.2 Max: 1.4 | Typ: 1.4 Max: 1.6 | Typ: 1.8 Max: 2.2 | ||
| Operating wavelength (optional) | nm | 532~980 | 1260~1650 | ||
| Test wavelength (optional) | nm | 650/780/850/980 | 1310/1490/1550/1625/1650 | ||
| Return loss | dB | SM≥50, MM≥30 | |||
| Channel crosstalk | dB | SM≥55, MM≥35 | |||
| Polarization-dependent loss | dB | ≤0.05 | |||
| Wavelength-dependent loss | dB | ≤0.25 | |||
| Temperature-related losses | dB | ≤0.25 | |||
| Repeatability | dB | ≤±0.02 | |||
| Service life | Second-rate | 107 | |||
| Transmitted optical power | mW | ≤500 | |||
| Switching Time | ms | ≤10 (adjacent channel sequential switching) | |||
| Operating temperature | ℃ | -10~+50 | |||
| Storage temperature | ℃ | -40~+85 | |||
| power supply | V | AC 85-264V, 50/60Hz | |||
| External dimensions | mm | 245 (width) × 110 (height) × 320 (depth) mm (>32 lanes require custom chassis) | |||
AndXe Networks
Corporate Email: susie@andxe.com
Corporate Mobile: 182 8033 7727
This product only displays some parameters. Please contact us if needed.
