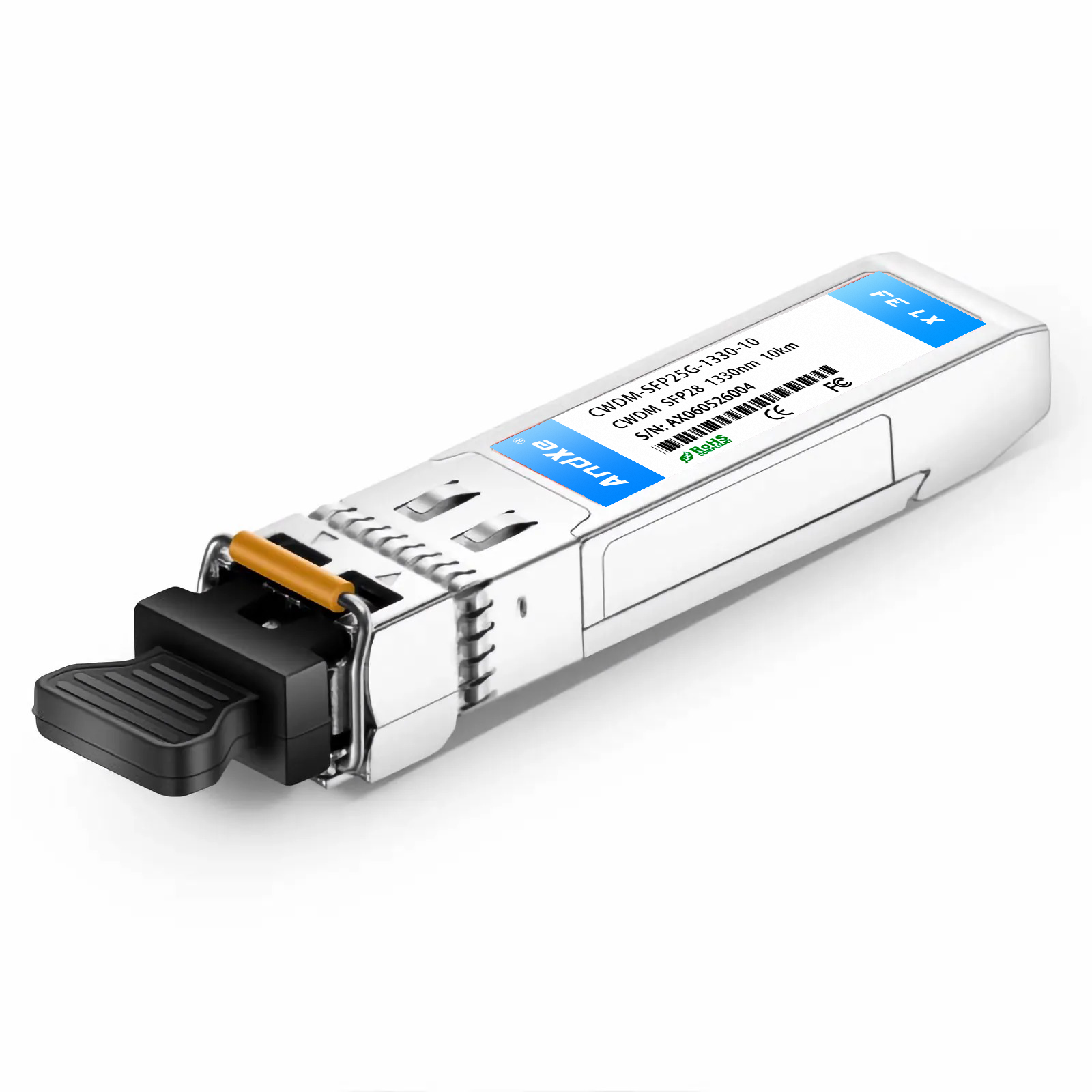

CWDM-SFP25G-1330-10 Compatible 25G 1330nm CWDM SFP28 10km Optical Transceiver Module
¥0.00
Product Overview
CWDM-SFP25G-1330-10 is compatible with 25G 1330nm CWDM SFP28 10km optical transceiver module (SMF, 1330nm, 10km, LC, DDM)
This universal CWDM-SFP25G-1330-10 compatible SFP28 optical transceiver is equipped with an LC duplex connector and can achieve link transmission up to 10 kilometers under G.652/655 encoding. This 25GBase-CWDM SFP28 transceiver module manufactured by AndXe complies with the SFP28 MSA standard and is fully compatible with most Cisco devices. The operating wavelength range of this 25G CWDM SFP28 module is from 1270nm to 1370nm, which complies with ITU-T standards and is designed specifically for CWDM network equipment deployed in metropolitan access networks or pre-5G networks.
|
Model Name: |
CWDM-SFP25G-1330-10 |
Vendor Name: |
AndXe |
|
Form Factor: |
SFP28 |
Data Rate: |
25Gbps |
|
Wavelength: |
1330nm |
Distance: |
10km@OS2 |
|
Connector: |
LC Duplex |
Cable Type: |
OS2 SMF |
|
Transmitter Type: |
DFB CWDM |
Receiver Type: |
PIN |
|
TX Power: |
-7~2dBm |
Receiver Sensitivity: |
<-14dBm |
|
Power Consumption: |
<1.3W |
DDM: |
Support |
|
Protocols: |
SFP28 MSA, CPRI, eCPRI |
Warranty: |
3 Years |
Traffic Testing
Test the bit error rate and packet loss rate, to make them meet the corresponding standards and ensure the performance of transceivers.
Optical Performance Testing
Test the transceivers' eye diagram situation, receiving sensitivity, extinction ratio, wavelength, light-emitting, light-receiving, current and voltage, to ensure the signal quality, stability and reliability of the transmission.
End Face Testing
Check the end face of the transceivers and keep them clean for more stable data transmission, better performance, and durability.
Various Switch Tests
Every module is quality tested for compatibility in the multi-brand switches environment, guaranteeing flawless operations.
