Power and wavelength testing
Test the signal transmission strength and wavelength, ensure the signal decoding capability of the receiver, and maintain consistency in wavelength from the transmitter to the receiver.
SGMII SFP CWDM-SFP-SGMII-(Transmission Distance Optional) Optical Module
¥0.00
跳至产品信息

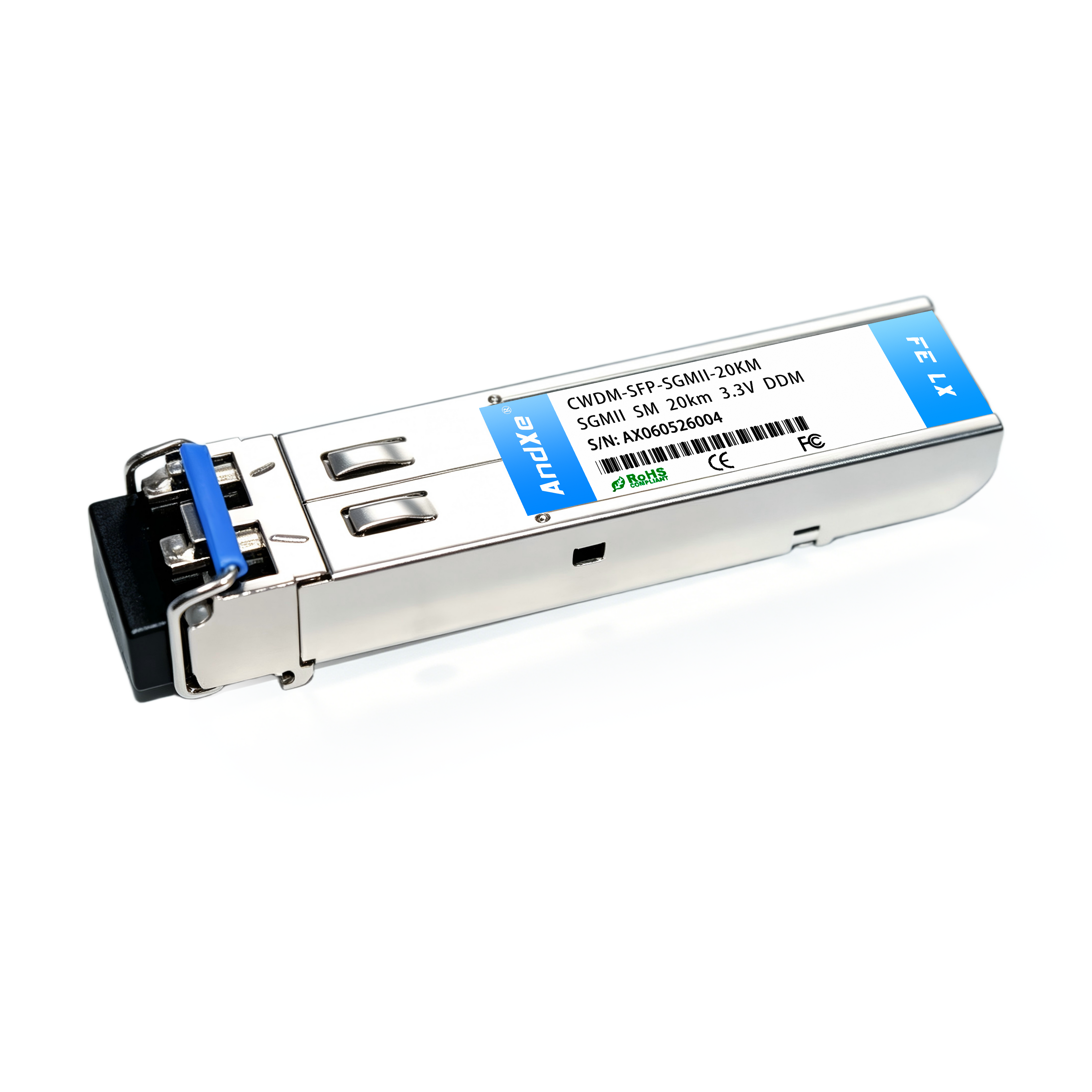

SGMII SFP CWDM-SFP-SGMII-(Transmission Distance Optional) Optical Module
¥0.00
Product Overview
Built-in support for PHY with SGMII interface; 100BASE/1000BASE-X operation; standard serial ID information, compatible with SFP MSA; spring latching for high-density applications; extremely low electromagnetic interference and excellent electrostatic protection; multimode/single mode selectable; multiple wavelengths including 850nm/1310nm/1550nm/CWDM/DWDM selectable; LC/SC connectors optional; transmission distance 0~200km optional; operating voltage +3.3V; with/without DDM optional; default with DDM; single fiber bidirectional/dual fiber bidirectional selectable; RoHS compliant; operating temperature, commercial and industrial grades optional; widely used in broadcasting and television, telecommunications, mobile, China Unicom, aerospace, aviation, military, ships, power, railway, medical, transportation, communication, telecom operators, industrial control, power control and other major fields
Product Specifications
Built-in PHY supports SGMII interface
100BASE/1000BASE-X operation
Standard sequence ID information is compatible with SFP MSA
High-density applications utilize spring latch mechanisms
The electromagnetic interference is extremely low, and the electrostatic protection is excellent
Multi-mode/single-mode optional
Multiple wavelengths are available, including 850nm, 1310nm, 1550nm, CWDM, and DWDM
Optional transmission distance of 0~200km
LC/SC connectors are optional
Operating voltage +3.3V
Optional with/without DDM; default with DDM
Single-fiber bidirectional/dual-fiber bidirectional options available; RoHS compliant
Our Advantages
With excellent skills and rich experience
Independent research and development, craftsmanship and intelligence, customizable needs
Imported chips, high-quality solutions, stable performance
Fully compatible. Senior talents to solve technical issues
DDM Digital Diagnostics Real-time Monitoring Module Status
Special test: All performance items have been tested and meet the required standards
Traffic Testing
Test the bit error rate and packet loss rate, to make them meet the corresponding standards and ensure the performance of transceivers.
Optical Performance Testing
Test the transceivers' eye diagram situation, receiving sensitivity, extinction ratio, wavelength, light-emitting, light-receiving, current and voltage, to ensure the signal quality, stability and reliability of the transmission.
End Face Testing
Check the end face of the transceivers and keep them clean for more stable data transmission, better performance, and durability.
Various Switch Tests
Every module is quality tested for compatibility in the multi-brand switches environment, guaranteeing flawless operations.
