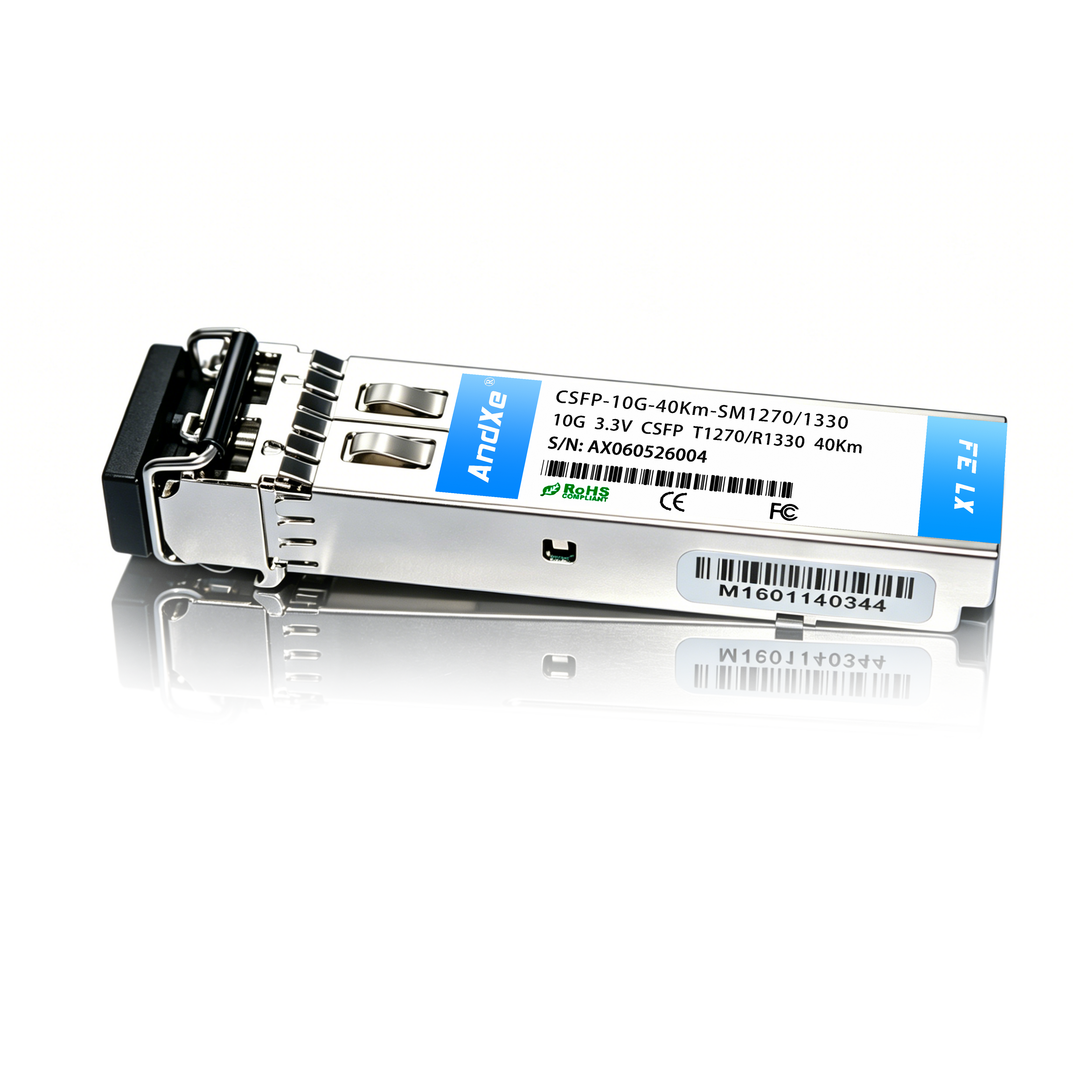

CSFP & CSFP+ Optical Module CSFP-10G-40Km-SM1270/1330
¥0.00
跳至产品信息
CSFP & CSFP+ Optical Module CSFP-10G-40Km-SM1270/1330
¥0.00
The CSFP optical module series is a high-stability and high-density module independently developed and produced by AndXe. Featuring a dual BD design, it boasts high reliability and enhanced board density; 1310/1490; 1310/1550; 1270/1330... multiple wavelengths optional; international mainstream standard LC connector; compliant with CSFP MSA Option2 and SFF-847; default with DDM; operating temperature, available in commercial and industrial grades; widely used in various fields such as broadcasting and television, telecommunications, mobile, China Unicom, aerospace, aviation, military, ships, electricity, railway, medical, transportation, communication, telecom operators, industrial control, power control, etc
Product Description
Dual BD design, high reliability, and enhanced board density
1310/1490; 1310/1550; 1270/1330... multiple wavelengths available
International mainstream standard LC connector
Transmission distance: 40Km
Speed: 10G
Compliant with CSFP MSA Option2 and SFF-847
Operating voltage +3.3V
Optional with/without DDM; default with DDM
Operating temperature, available in commercial and industrial grades
Application
Ethernet, SONET/SDH, Fibre Channel
Single-fiber bidirectional; RoHS compliant
Our Advantages
With excellent skills and rich experience
Independent research and development, craftsmanship and intelligence, customizable needs
Imported chips, high-quality solutions, stable performance
Fully compatible. Senior talents to solve technical problems
DDM Digital Diagnostics: Real-time Monitoring of Module Status
Special test: All performance items have been tested and meet the required standards
Traffic Testing
Test the bit error rate and packet loss rate, to make them meet the corresponding standards and ensure the performance of transceivers.
Optical Performance Testing
Test the transceivers' eye diagram situation, receiving sensitivity, extinction ratio, wavelength, light-emitting, light-receiving, current and voltage, to ensure the signal quality, stability and reliability of the transmission.
End Face Testing
Check the end face of the transceivers and keep them clean for more stable data transmission, better performance, and durability.
Various Switch Tests
Every module is quality tested for compatibility in the multi-brand switches environment, guaranteeing flawless operations.
