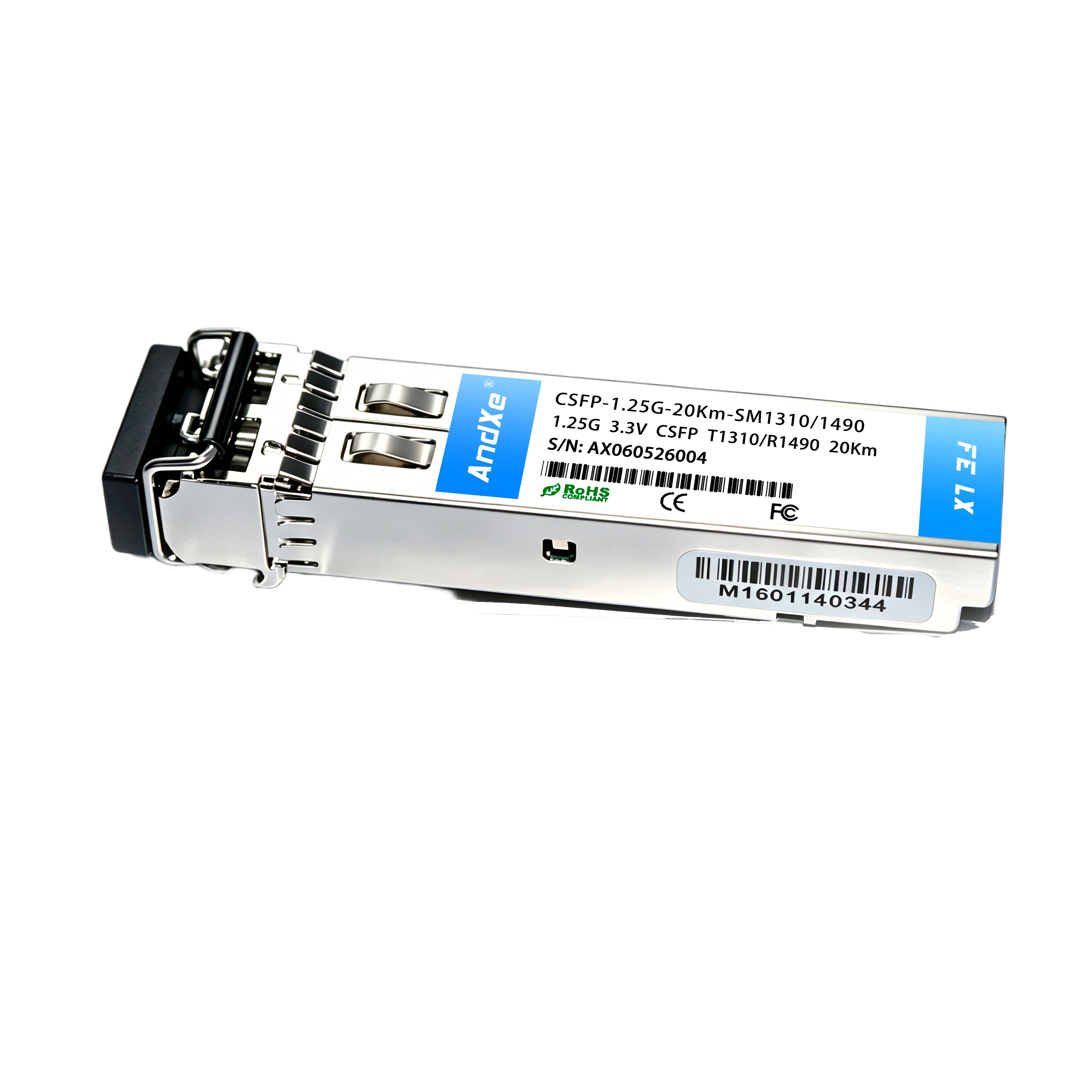

The CSFP optical module series is a high-stability and high-density module independently developed and produced by AndXe. With a dual BD design, it boasts high reliability and enhanced board density; 1310/1490; 1310/1550; 1270/1330... multiple wavelengths optional; international mainstream standard LC connector; compliant with CSFP MSA Option2 and SFF-847; default with DDM; operating temperature, available in commercial and industrial grades; widely used in various fields such as broadcasting and television, telecommunications, mobile, China Unicom, aerospace, aviation, military, ships, electricity, railway, medical, transportation, communication, telecom operators, industrial control, power control, etc
Product Description Dual BD design, high reliability, and enhanced board density 1310/1490; 1310/1550; 1270/1330... multiple wavelengths available International mainstream standard LC connector Transmission distance: 20Km Speed: 1.25G Compliant with CSFP MSA Option2 and SFF-847 Operating voltage +3.3V Optional with/without DDM; default with DDM Operating temperature, available in commercial and industrial grades
Our Advantages With excellent skills and rich experience Independent research and development, craftsmanship and intelligence, customizable needs Imported chips, high-quality solutions, stable performance Fully compatible. Senior talents to solve technical issues DDM Digital Diagnostics Real-time Monitoring Module Status Special test: All performance items have been tested and meet the required standards
ABSOLUTEMAXIMUMRATING
Parameter
Symbol
Min.
Max.
Unit
Notes
Storage Ambient
TSTG
-40
85
°C
Operating Case
Tc
-40
85
°C
Operating Humidity
OH
5
95
%
Power Supply Voltage
VCC
0
4
V
Power Consumption
1.5
W
RECOMMENDED OPERATING CONDITION
Parameter
Symbol
Min.
Typ.
Max.
Unit
Notes
Operating Case
Tc
0
70
°C
Commercial
Temperature
Tc
-40
85
°C
Industrial
Power Supply Voltage
VCC
3.13
3.3
3.47
V
Power Supply Current
ICC
400
450
mA
Date Rate
2.5
Gbps
Data Rate Drift
-100
+100
PPM
TRANSMITTER OPTICAL CHARACTERISTICS
Parameter
Symbol
Min.
Typ.
Max.
Unit
Notes
Centre Wavelength
λC
1480
1490
1500
nm
Spectral Width (RMS)
σ
3
nm
Average Output Power
Po
-5
0
dBm
Turn off Average Output Power
-45
dBm
Extinction Ratio
ER
8.2
dB
Optical Return Loss Tolerance
12
dB
Output Optical Eye IEEE Std 802.3ah
PRBS 27-1 @2.5Gbps
Side Mode Suppression Ratio
SMSR
30
TRANSMITTERELECTRICAL CHARACTERISTICS
Parameter
Symbol
Min.
Typ.
Max.
Unit
Notes
Data Input Differential Swing
200
2400
mV
Input Differential Impedance
85
100
115
Ω
TX Disable
Disable
2
VCC+0.3
V
Enable
-0.3
0.8
V
TX Fault
Normal
-0.3
0.4
V
Fault
2.4
VCCHOST
V
RECEIVER OPTICAL CHARACTERISTICS
Parameter
Symbol
Min.
Typ.
Max.
Unit
Notes
Operating Wavelength
λC
1260
1310
1360
nm
Sensitivity
SEN
-20
dBm
PRBS 27 -1BER≤10E-12 , ER=8.2dB
Saturation Optical Power
SAT
-3
dBm
Loss of Signal De-Assert Level
LOSD
-21
dBm
Loss of Signal Assert Level
LOSA
-36
dBm
Loss of Signal Hysteresis
0.5
5
dB
RECEIVERELECTRIAL CHARACTERISTICS
Parameter
Symbol
Min.
Typ.
Max.
Unit
Notes
Data Output Differential Swing
200
2400
mV
Loss of Signal – Low
-0.3
0.4
V
Loss of Signal – High
2.4
VCCHOST
V
PACKAGE OUTLINE
Power and wavelength testing
Test the signal transmission strength and wavelength, ensure the signal decoding capability of the receiver, and maintain consistency in wavelength from the transmitter to the receiver.
Test the bit error rate and packet loss rate, to make them meet the corresponding standards and ensure the performance of transceivers.
Optical Performance Testing
Test the transceivers' eye diagram situation, receiving sensitivity, extinction ratio, wavelength, light-emitting, light-receiving, current and voltage, to ensure the signal quality, stability and reliability of the transmission.
End Face Testing
Check the end face of the transceivers and keep them clean for more stable data transmission, better performance, and durability.
Various Switch Tests
Every module is quality tested for compatibility in the multi-brand switches environment, guaranteeing flawless operations.
