Product Overview

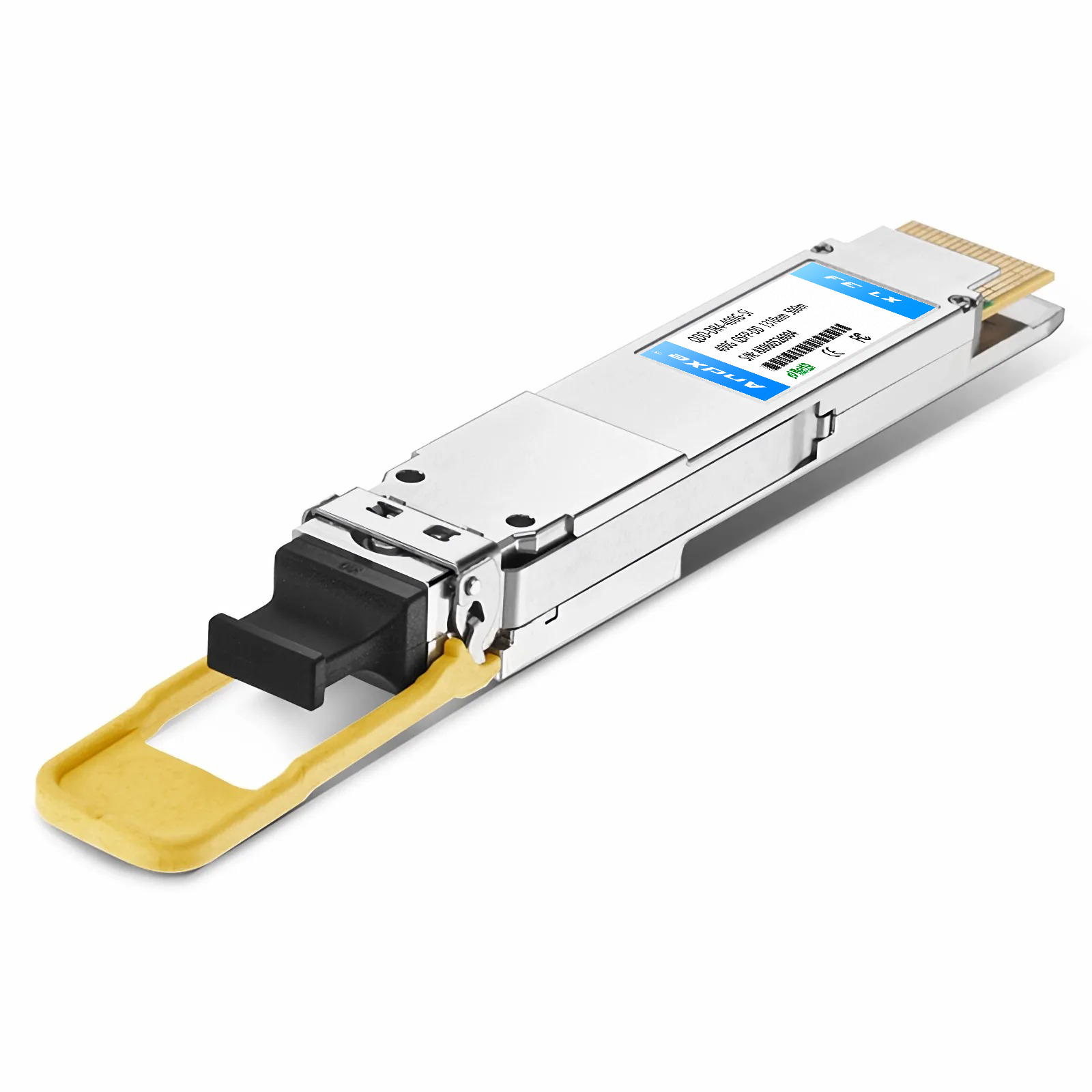

OSFP-DR4-400G-Si optical module (single-mode fiber, 1310nm, 500m, MPO-12/APC, DOM, with heat dissipation fins)
Silicon photonics optical module, MTP/MPO-12 connector, capable of transmitting up to 500 meters over parallel single-mode fiber. Compliant with OSFP MSA, CMIS 4.0 I2C interface, and 400G AUI-8 standards.
The 400G Ethernet signal is transmitted through four parallel 1310nm optical channels, with one wavelength per channel. It can be connected as a 4x100G branch to QSFP-DR-100G.
Product features
Equipped with a Broadcom 7nm DSP chip, with a maximum power consumption of 10W
Based on SiPh technology, it boasts lower power consumption, more cost-effective, and higher density
Real-machine testing to ensure superior performance, quality, and reliability
Compliant with OSFP MSA and CMIS 4.0 standards
Supports 4x100G breakout to QSFP-DR-100G
The high-speed electrical interface complies with the IEEE 802.3bs standard
8x50G PAM4 retiming 400G AUI-8 electrical interface
It can interwork with other 400GBASE interfaces compliant with IEEE standards (if applicable)
Specifications
| Compatible Model Name | OSFP-DR4-400G-Si | Brand | AndXe |
| Package Type | OSFP with heat sink | Max Transmission Rate | 425Gbps(4x106.25Gb/s) |
| Wavelength | 1310nm | Max Transmission Distance | 500m |
| Interface | MPO-12/APC | Cable Type | Single-mode |
| Transmitter Type | DFB | Receiver Type | PIN |
| Transmitting Power | -2.9-4.0dBm | Minimal Receiving Power | -5.9dBm |
| Power Budget | 3dB | Receiving Overload | 5.0dBm |
| Max Power Consumption | 10W | Extinction Ratio | >3.5dB |
| DDM/DOM (Digital Diagnostics) | Support | Commercial Temperature Range | 0 to 70℃ (32 to 158°F) |
| Modulation Method (Electrical Port) | 8x50G-PAM4 | Modulation Method (Optical Port) | 4x100G-PAM4 |
| CDR (Clock Data Recovery) | TX and RX | IntegratedFEC | No |
| Core Size | 8.4-9.3um | Packaging Technology | COB |
| Supported Protocols | IEEE 802.3bs,OSFP MSA,CMIS 4.0 | Warranty | 3 Years |
Traffic Testing
Test the bit error rate and packet loss rate, to make them meet the corresponding standards and ensure the performance of transceivers.
Optical Performance Testing
Test the transceivers' eye diagram situation, receiving sensitivity, extinction ratio, wavelength, light-emitting, light-receiving, current and voltage, to ensure the signal quality, stability and reliability of the transmission.
End Face Testing
Check the end face of the transceivers and keep them clean for more stable data transmission, better performance, and durability.
Various Switch Tests
Every module is quality tested for compatibility in the multi-brand switches environment, guaranteeing flawless operations.
