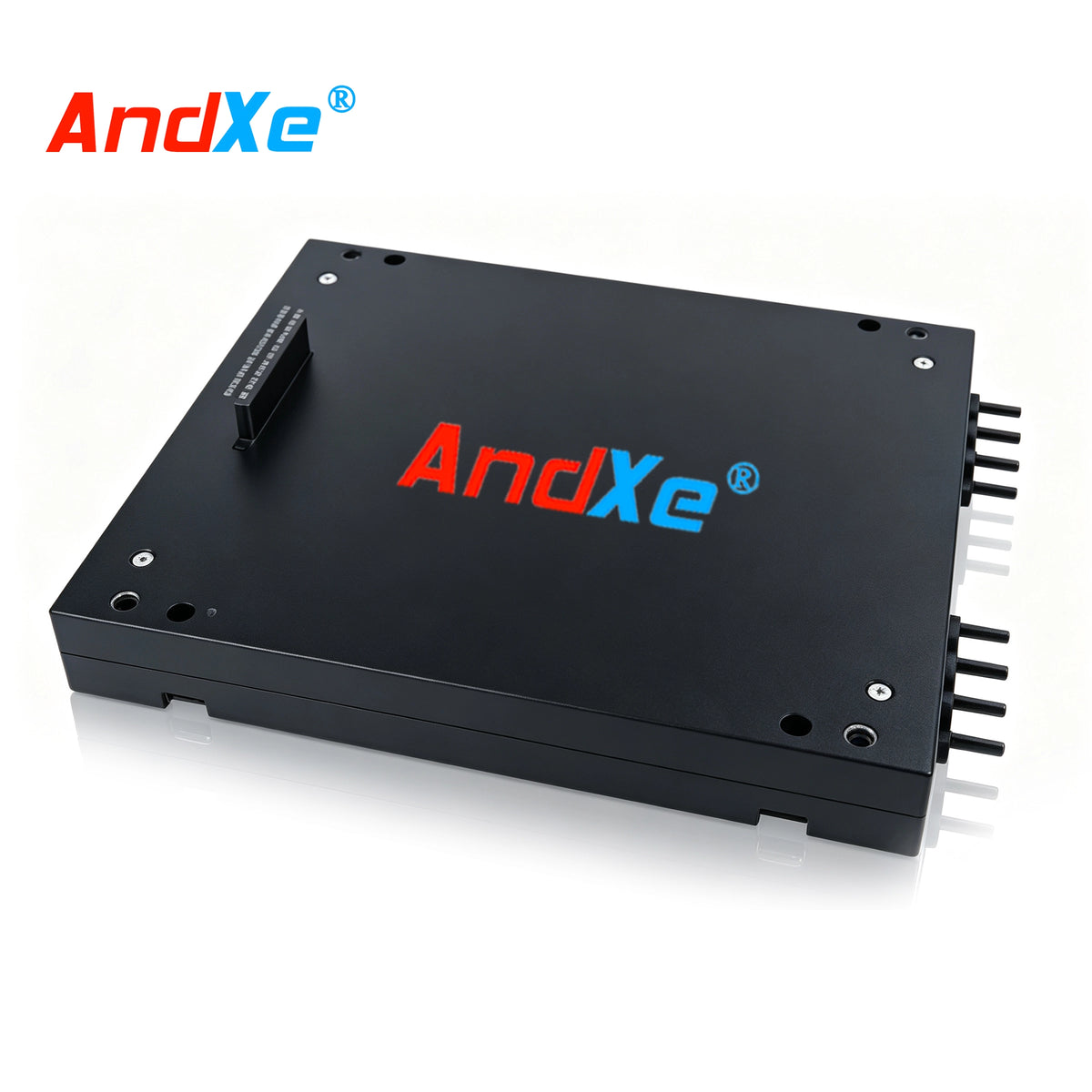

4×4 matrix optical switch module
¥0.00
Product Features
● Low insertion loss
● Wide wavelength range
● Low crosstalk
● High stability and reliability
● Modular design
Applications
● Laboratory R&D
● System Monitoring
● OADM Configuration
● Metropolitan Area Networks
● Multi-channel Optical Monitoring
● Fiber Optic Sensing
● Remote Fiber Optic Monitoring Systems
Technical parameters
| model | 4×4 matrix optical switch module |
| Operating wavelength | 1260-1650nm |
| Test wavelength | 1310/ 1550nm |
| Insertion loss | ≤2.5dB |
| Return loss | ≥45dB |
| Crosstalk | ≥50dB |
| Polarization-dependent loss | <0.3dB |
| Wavelength-dependent loss | <0.8dB |
| Temperature-related losses | <0.5dB |
| Switching Time | ≤50ms (16x16 state transition time) |
| ≤15ms (adjacent state switching time) | |
| Transmitted optical power | ≤23dBm |
| Fiber type | SM-9/125 |
| Optical interface type | FC/APC |
| Fiber length | 1.00 m |
| Control Interface | RS232 |
| Operating voltage | DC5V |
| Power consumption | ≤10W |
| Operating temperature | -5℃ ~ +70℃ |
| Storage temperature | -40℃ ~ +85℃ |
| Module size | 200x100x22mm |
