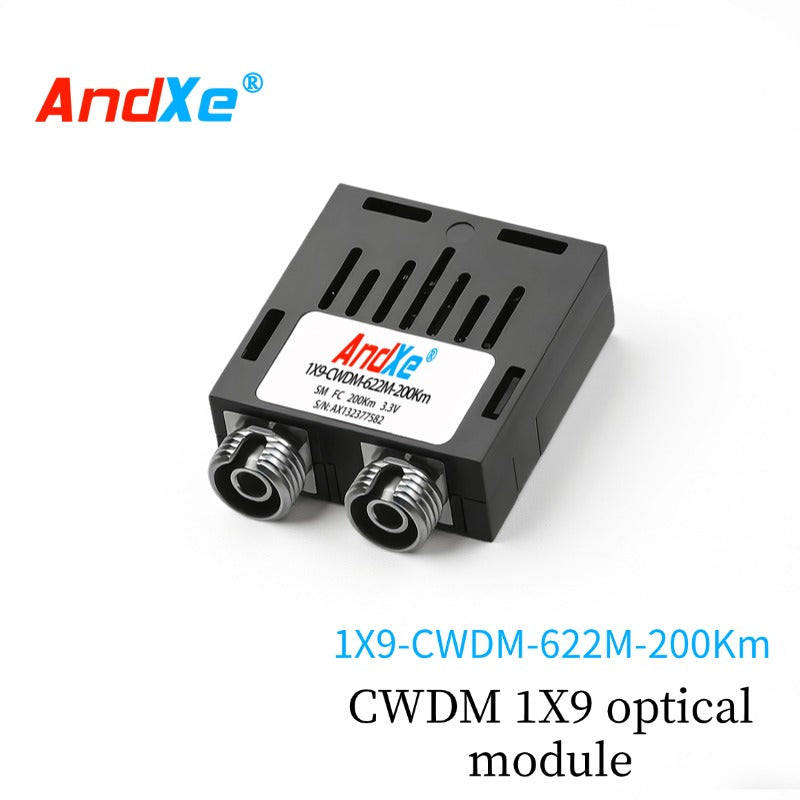

Product Overview The 1X9-CWDM-622M-200Km optical module from AndXe is a perfect solution for implementing low-speed communication networks.
Product Description SC/FC/ST or pigtail type optical interface, dual-fiber optical transceiver module; +3.3V /+5V power supply optional; interface level compatible with standard PECL level; standard 1×9 pin package wavelength: 850nm/1310nm/1490nm/1550nm/CWDM/DWDM optional; transmission distance: 0~200km optional; operating temperature, commercial and industrial grades available; can accept customized 1×9 optical modules with DDM; widely used in aerospace, aviation, military, ships, power, railway, medical, transportation, communication, telecom operators, industrial control, power control and other major fields.
Product parameters Model: 1X9-CWDM-622M-200Km 622Mbps,FE,FDDI,ATM,SONET/OC-12,SDH/STM-.. +3.3V /+5V power supply options Interface level compatible with standard PECL level Standard 1×9 pin package Transmission distance: 200km Operating temperature, available in commercial and industrial grades Customized 1×9 optical module with DDM is acceptable SD level is optional
application Applied to optical fiber transmission systems SDH, ATM, Gigabit Ethernet The bit rate can reach up to 622Mbps
Our Advantages With excellent skills and rich experience Independent research and development, craftsmanship and intelligence, customizable to meet specific needs Imported chips, high-quality solutions, stable performance Fully compatible. Senior talents to solve technical issues DDM Digital Diagnostics Real-time monitoring of module status Special test: All performance metrics have been tested and meet the required standards
Module outline drawing (unit: mm)
Power and wavelength testing
Test the signal transmission strength and wavelength, ensure the signal decoding capability of the receiver, and maintain consistency in wavelength from the transmitter to the receiver.
Test the bit error rate and packet loss rate, to make them meet the corresponding standards and ensure the performance of transceivers.
Optical Performance Testing
Test the transceivers' eye diagram situation, receiving sensitivity, extinction ratio, wavelength, light-emitting, light-receiving, current and voltage, to ensure the signal quality, stability and reliability of the transmission.
End Face Testing
Check the end face of the transceivers and keep them clean for more stable data transmission, better performance, and durability.
Various Switch Tests
Every module is quality tested for compatibility in the multi-brand switches environment, guaranteeing flawless operations.
