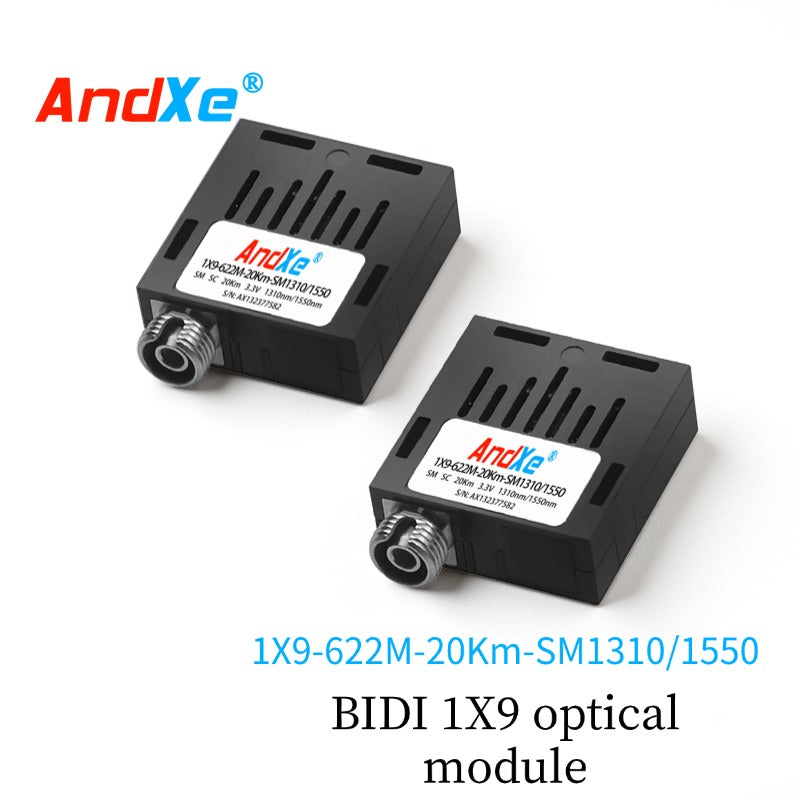

1×9 622M single-fiber optical module, 1X9-622M-20Km-SM1310/1550 SC/FC/ST interfaces optional
¥0.00
跳至产品信息
1×9 622M single-fiber optical module, 1X9-622M-20Km-SM1310/1550 SC/FC/ST interfaces optional
¥0.00
Product Overview
The 1X9-622M-20Km-SM1310/1550 optical module from AndXe is a perfect solution for implementing low-speed communication networks.
Product Description
It adopts multiple optical interface specifications such as SC/FC/ST and pigtail types, and is a single-receiving optical module. It supports dual power supply options of +3.3V and +5V, with interface levels compatible with standard PECL levels, and adopts the industry-standard 1×9 pin package.
Wavelength options include 850nm, 1310nm, 1490nm, 1550nm, as well as CWDM and DWDM customized bands; transmission distances cover the full range of 0~200km; operating temperatures are divided into commercial and industrial versions, adapting to multiple scenarios. It can be customized to carry a 1×9 optical module with DDM function. The product has strong adaptability and excellent stability, widely applicable to many key fields such as aerospace, military ships, power grids, rail transit, medical equipment, intelligent transportation, communication networks, telecommunications operations, industrial automation, and electronic control systems.
Product parameters
Model: 1X9-622M-20Km-SM1310/1550
622Mbps,FE,FDDI,ATM,SONET/OC-12,SDH/STM-4…
+3.3V /+5V power supply options
Interface level compatible with standard PECL level
Standard 1×9 pin package
Wavelength: 1310nm/1550nm
Transmission distance: 20km
Operating temperature, with commercial and industrial grades available
Customization of 1×9 optical modules with DDM is acceptable
SD level is selectable
application
Applied to optical fiber transmission systems
SDH, ATM, Gigabit Ethernet
The bit rate can reach up to 622Mbps
Our Advantages
With excellent skills and rich experience
Independent research and development, craftsmanship and intelligence, customizable needs
Imported chips, high-quality solutions, stable performance
Fully compatible. Senior talents to solve technical problems
DDM Digital Diagnostics: Real-time Monitoring of Module Status
Special test: All performance metrics have been tested and meet the required standards
Traffic Testing
Test the bit error rate and packet loss rate, to make them meet the corresponding standards and ensure the performance of transceivers.
Optical Performance Testing
Test the transceivers' eye diagram situation, receiving sensitivity, extinction ratio, wavelength, light-emitting, light-receiving, current and voltage, to ensure the signal quality, stability and reliability of the transmission.
End Face Testing
Check the end face of the transceivers and keep them clean for more stable data transmission, better performance, and durability.
Various Switch Tests
Every module is quality tested for compatibility in the multi-brand switches environment, guaranteeing flawless operations.
