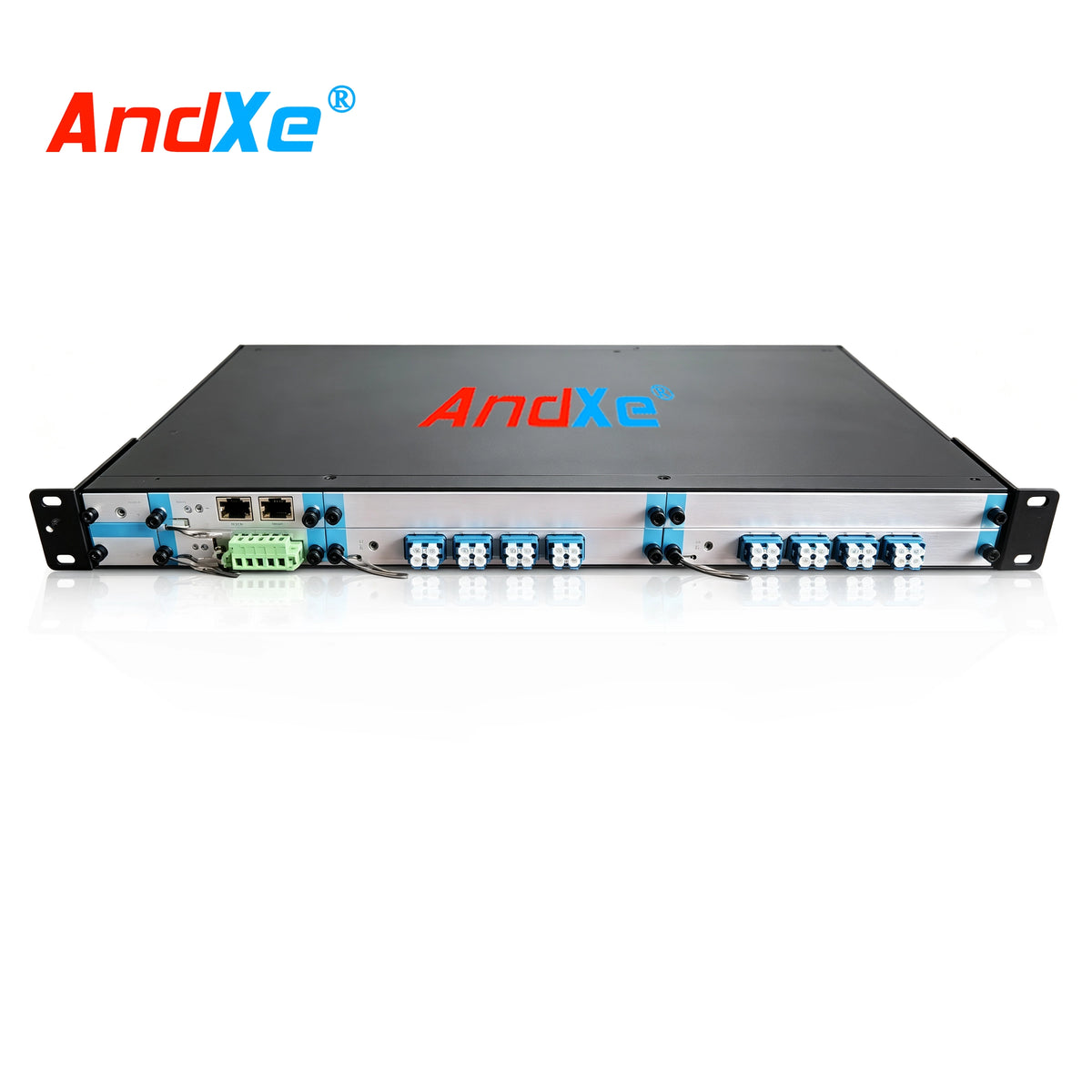

16×16 matrix optical switch
¥0.00
Product Description:
An optical switch is an optical path control device that controls and switches optical paths. It plays a crucial role in optical communication applications. Optical switches are mainly used in: multi-channel optical monitoring LANs in optical transmission systems, automatic switching of multiple light sources/detectors, and optical cable testing in optical networks and field engineering projects.
Product Features:
(1) Low insertion loss;
(2) LCD display screen for intuitive display of optical path status, facilitating user operation;
(3) Optical path switching can be performed via panel buttons and serial port commands. Button operation can be locked via serial port commands.
Technical parameters
| model | 16×16 matrix optical switch |
| Operating wavelength | 1260～1650nm |
| Test wavelength↵ | 1310 nm |
| Insertion loss | Typ: <2.0 dB, Max: <2.5 dB |
| Repeatability | ≤±0.1 dB |
| Return loss↵ | ≥45dB |
| Crosstalk | ≥50dB |
| Wavelength-dependent loss↵ | ≤0.50↵ |
| Polarization-dependent loss | ≤0.15↵ |
| Switching Time | ≤50mse |
| Fiber type | SM (9/125um) |
| Connector type | FC/PC |
| Monitoring port | RJ45↵ |
| working power supply | AC: 85～264V (50/60Hz) |
| Operating temperature | -10～+70℃ |
| Storage temperature | -50～+70℃↵ |
| Chassis type | 19-inch standard 2U rack mount (483×350×89mm) |
