Product Overview
AX-X710BM2-F2 is a 10-Gigabit Ethernet dual-port optical network interface controller (NIC) featuring two 10G SFP+ interfaces, supporting a transmission bandwidth of 20Gbps. It also supports PCI-EX8 standard slots, ensuring efficient and stable operation of the NIC. Additionally, the NIC supports VLAN, OOS policies, traffic control, and other functions, making it suitable for medium to large-scale local area network applications.
Product Features
· The data center features low cost, low power consumption, and 25GbE performance;
·Port type: 2 25G SFP28 interfaces;
·Supports RDMA (iWRP, RoCEv2);
·Support IPsec offload;
·Supports inter-type data frame with a maximum size of 9728 bytes;
Supports network virtualization technologies such as SR-IOV, VxLAN, GENEVE, and GRE;
Specifications

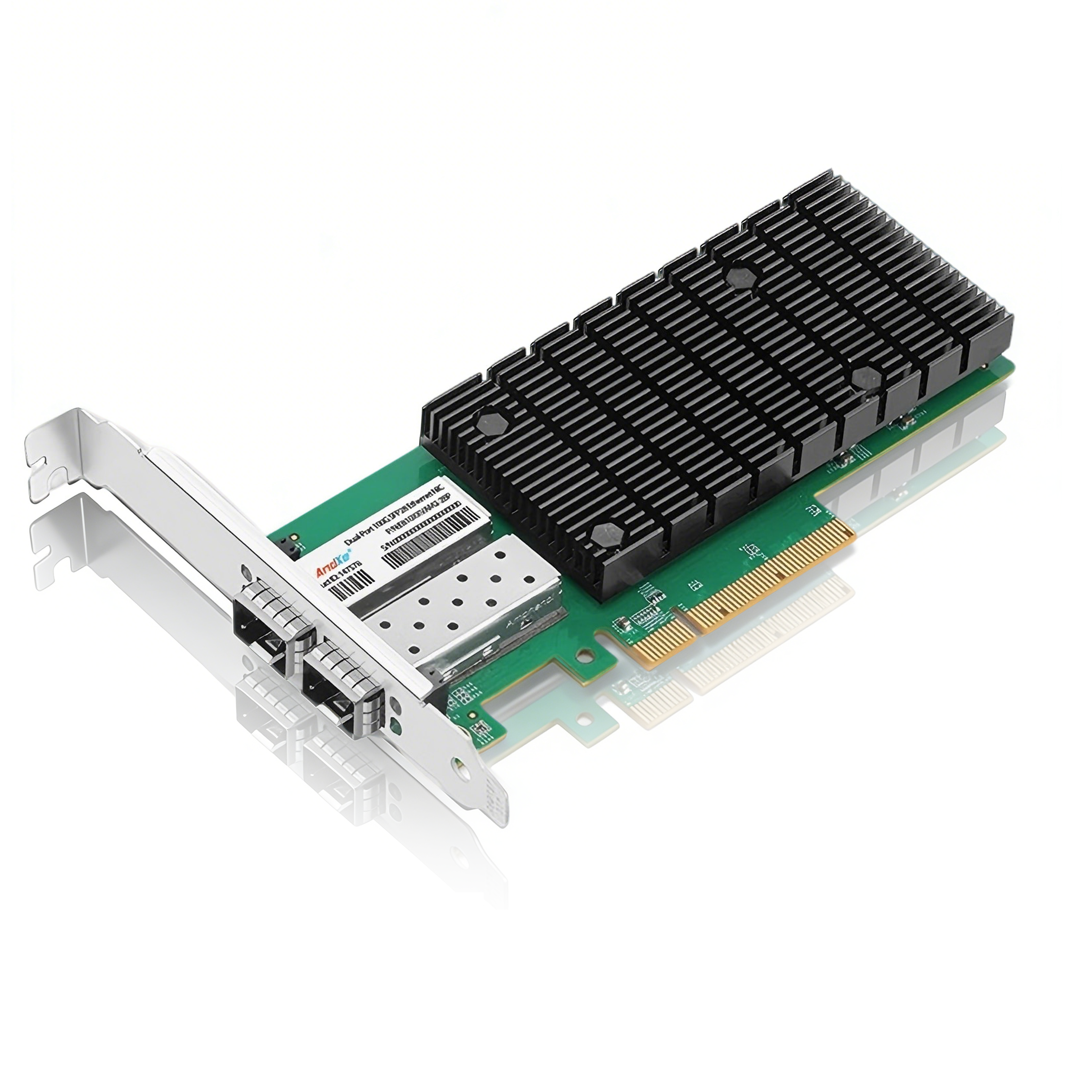

Product Name: 25G Dual-port Network Interface Card
Product model: AX-E810XXVAM2-F2
Processor chip: Intel E810XXVAM2 25G Ethernet controller
Bus type: PCIe 4.0×8
Port type: 2 25G SFP28 interfaces
Barrier height: full-height and half-height configurations
System interface type: PCIe 4.0
Ethernet storage: SMB Direct
Power consumption: 20.8W
Transmission medium type: Lc fiber, compliant with MMF's 62.5/50 micron specifications
Power supply: PCIe power supply
Transmission rate: 25Gbps
Warranty period: Three-year warranty, lifetime maintenance
Technical Specifications
Network standard: IEEE802.3
ISCSl acceleration: supported
QoS strategy: Support
FCOE offload: supported
RSS/TX Queue: Supported
PXE support: Yes
Interrupt levels: INTA, MSI, MSI-X
Operating temperature: 0°C to 55°C (32°F to 131°F)
Storage temperature: -40°C to 70°C (-40°F to 158°F)
Storage humidity: 90% non-condensing relative humidity at 35°C
LED indicator: A flashing green light (Act light) indicates that data is passing through
Installation and connection
To ensure the correct installation of the Ethernet adapter, please follow the steps below
1. Shut down the computer
2. Disconnect the power cable
3. Remove the computer cover and locate the idle PCI-E (X8, X16) bus expansion slot
4. Remove the slot cover plate (if any) by removing the screws or loosening the lever
5. Grab the top edge of the Ethernet adapter and firmly insert it into the card slot
6. Use existing screws or tie bars to re-secure the Ethernet adapter's mounting bracket
7. Close the computer cover, plug in the cable, and turn on the computer
8. Plug in the optical module and fiber cable
Fault handling methods
1. The Link indicator light does not illuminate after the optical module is inserted
★ Is the server turned on?
★ Is the Ethernet adapter properly inserted into the PCI-E bus expansion slot?
★If it still cannot be used normally, it may be due to dirt, sweat stains, or other contaminants on the gold fingers of the card, causing poor contact between the card and the motherboard slot. Cleaning the gold fingers with a rubber eraser usually resolves the issue and allows normal use;
★Whether the optical module is inserted correctly, only when it is inserted correctly will the Link indicator light up;
★ If the issue remains unresolved, please contact the after-sales service department for assistance;
2. The ACT indicator light does not flicker after the fiber cable is connected
★ Check if the TX and RX interfaces of the fiber optic cable are properly connected?
★Check if the optical module is compatible?
★ Check whether the fiber cable matches the optical module (multi-mode or single-mode)?
If you encounter any issues with the product, please contact our after-sales service department for assistance;
Precautions for use
★Pay attention to anti-static protection during product installation.
★ Do not place this product in a damp environment, such as a bathroom
★ Prevent damage from corrosive substances, such as hydrochloric acid, sulfuric acid, caustic soda, oxalic acid, etc
★ Please do not modify, disassemble, or repair without authorization.
★ Do not bake at high temperatures, as the casing and electronic components of the device may be damaged.
★Please do not expose this product to direct sunlight, as the casing and electronic components may be damaged.
★ Prevent impact, as external impacts may damage the product.
★ Operating temperature: -40°C to 70°C; operating humidity: 35% to 90% non-condensing relative humidity.
